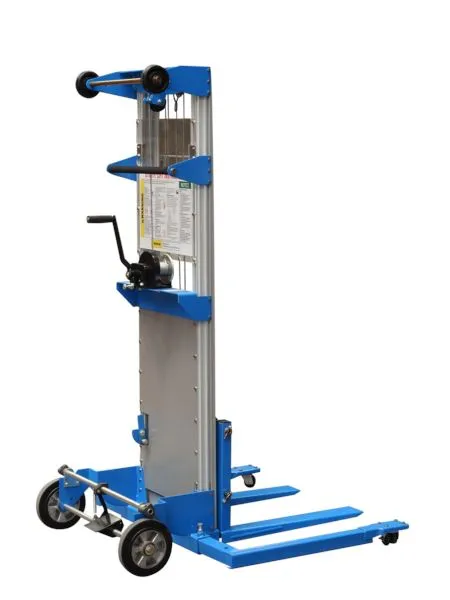

Aiko Aluminium High Lift Stacker 159Kg/3M-3.5M | Model : PT-BR159

Features :

• These aluminum winch lifters are great for assisting in the lifting. positioning. and installation of goods up to 2.5m or 3.0m in height

• All units fold for easy storage and transport

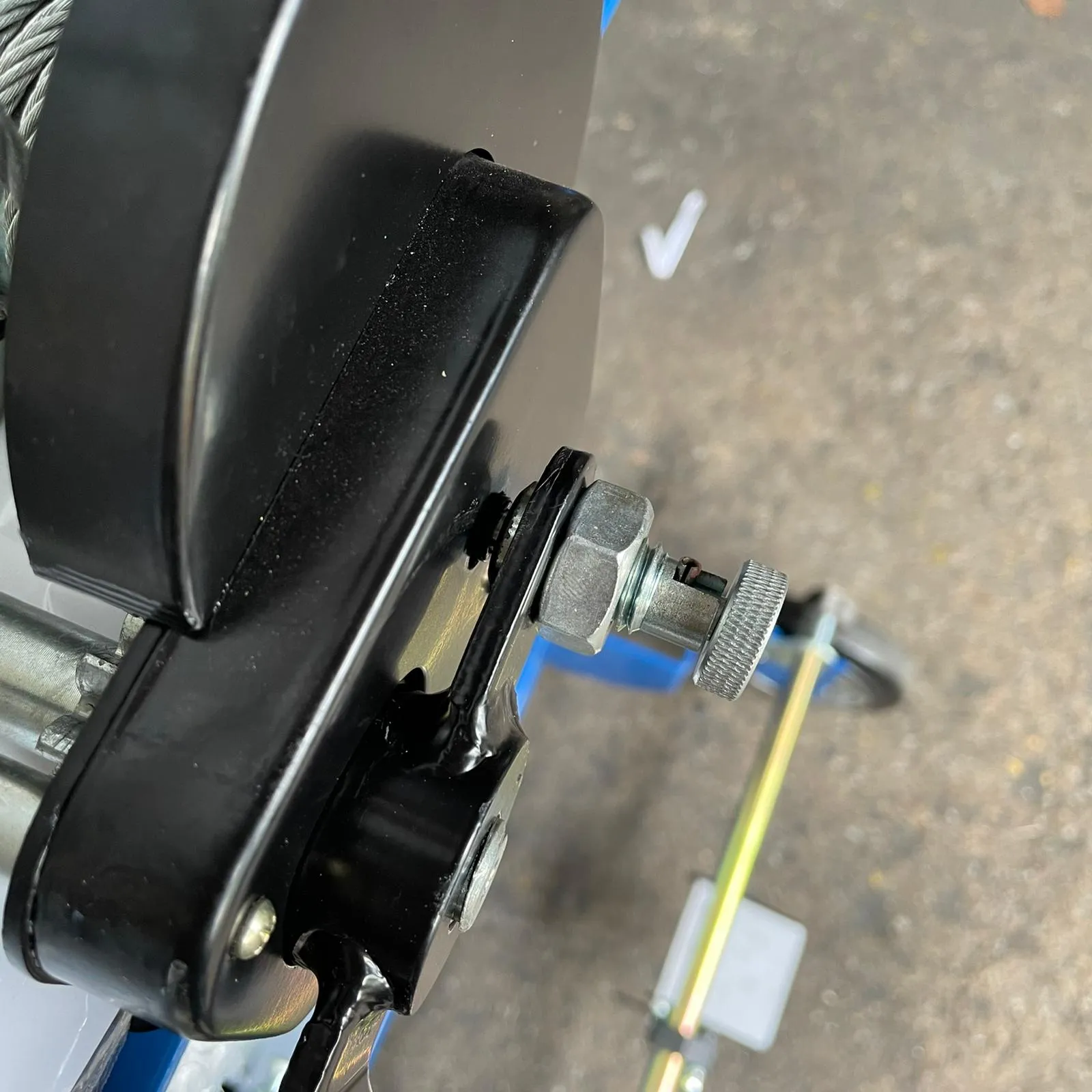

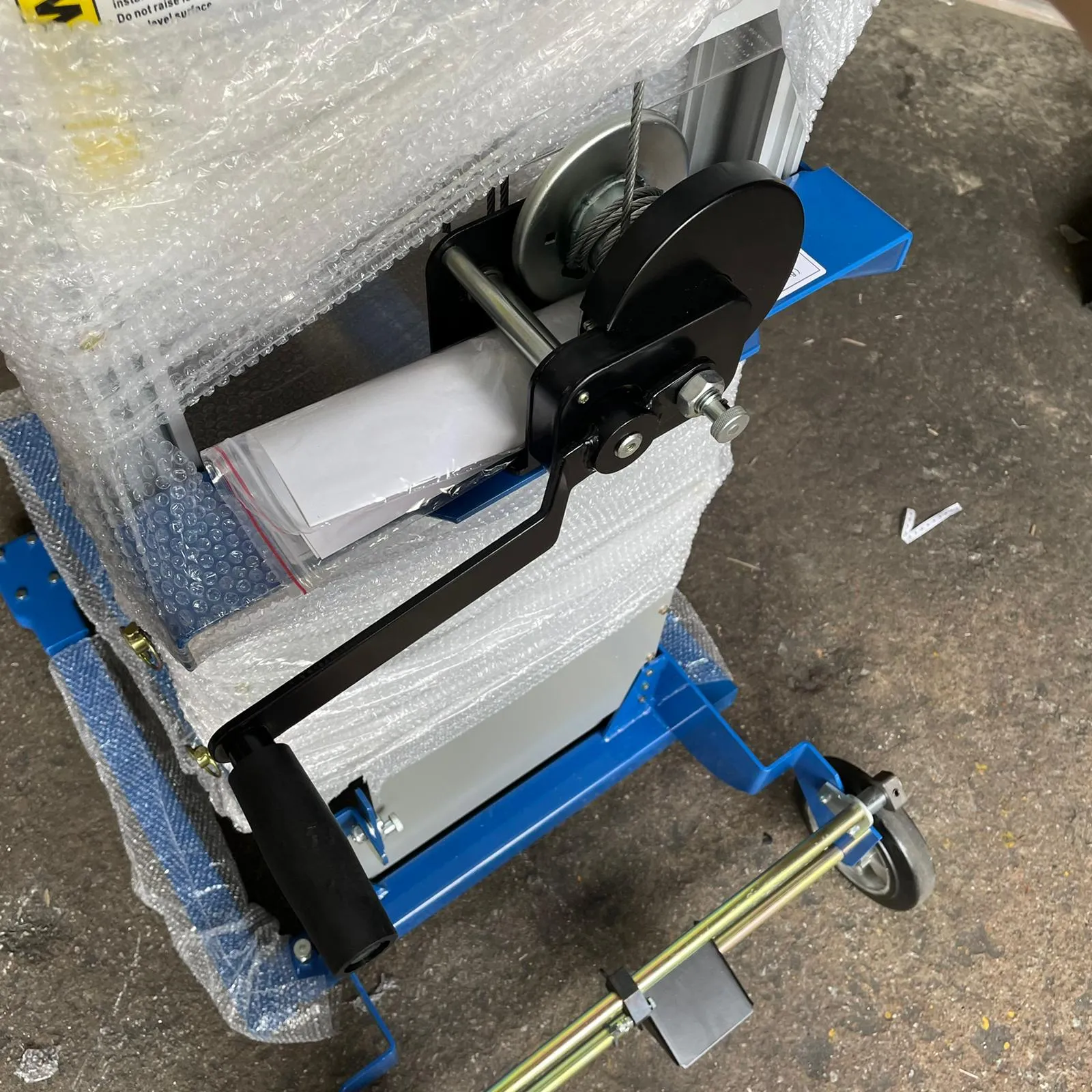

• Manual hand winch control with an automatic braking action

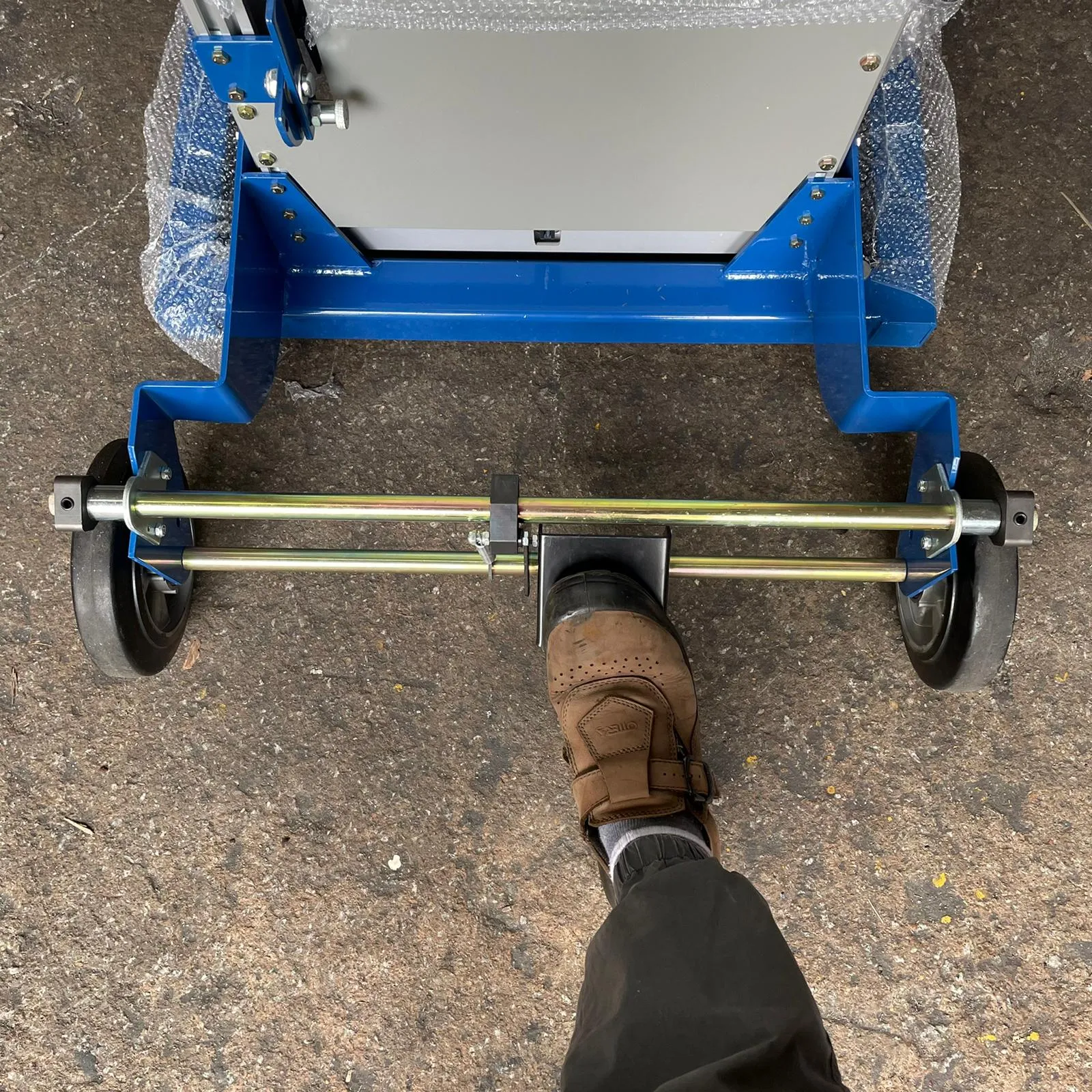

• Foot pedal brake

• Adjustable Legs

• Fits through standard doorways

• Quick setup requires no tools

Specifications :

• Model : PT-BR159

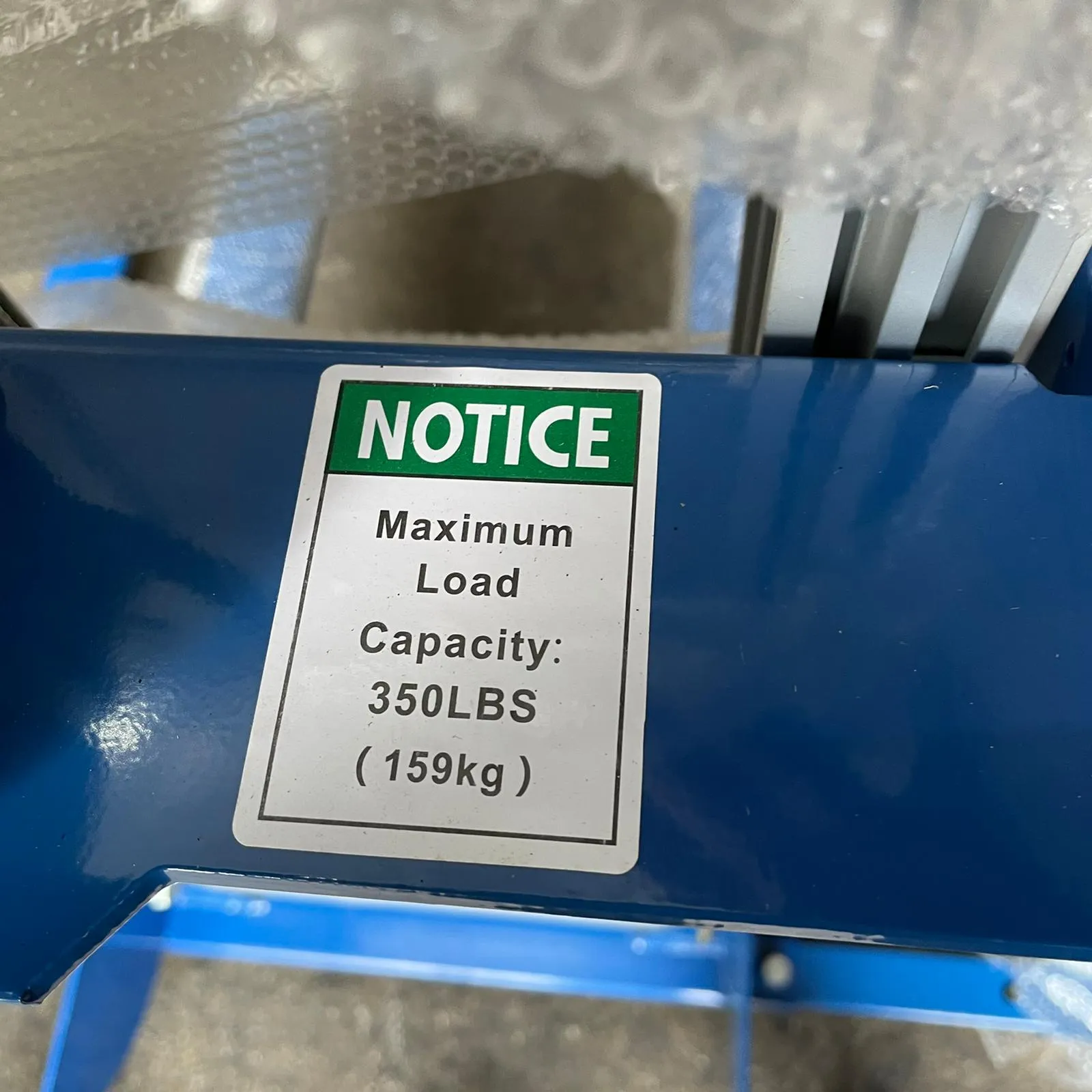

• Capacity: 159kg

• Lift Height (fork up): 3600mm

• Lift Height (fork down): 3000mm

• Fork Length: 570mm

• Single Fork Width: 105mm

• Outside Width of 2 Forks: 530mm

• Inside Width of 2 Forks: 330mm

• Load Center: 254mm

• Overall Length: 1100mm

• Overall Width: 736mm

• Lowest-Highest Mast Height: 2030mm-3600mm

• Minimum Fork Height: 51mm

• Adjustable Legs Outside Width: 735-1080mm

• Adjustable Legs Inner Width: 560mm-900mm

• Single Leg Width: 105mm

• Unit Weight: 82kg
