Product Details
＋

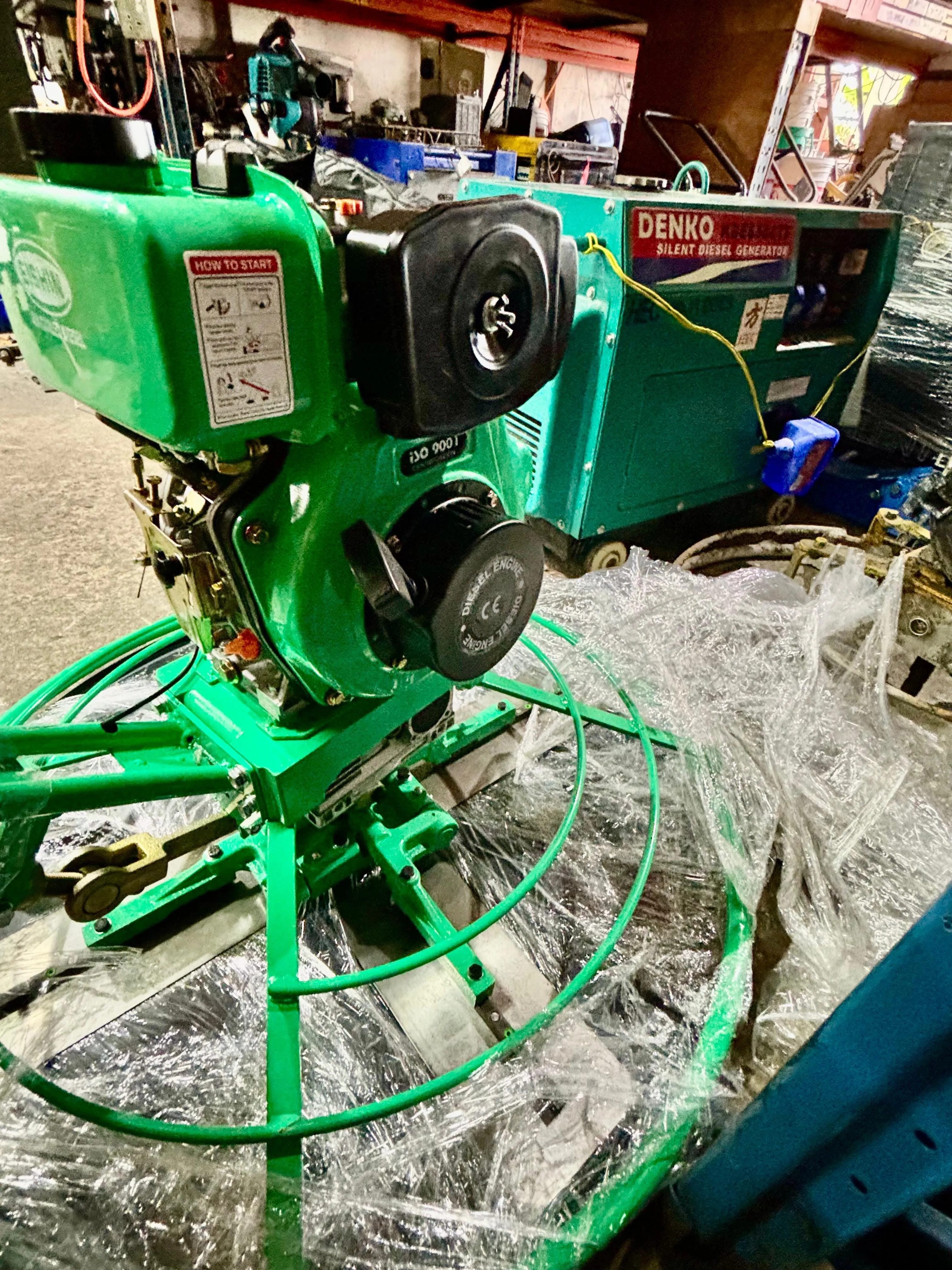

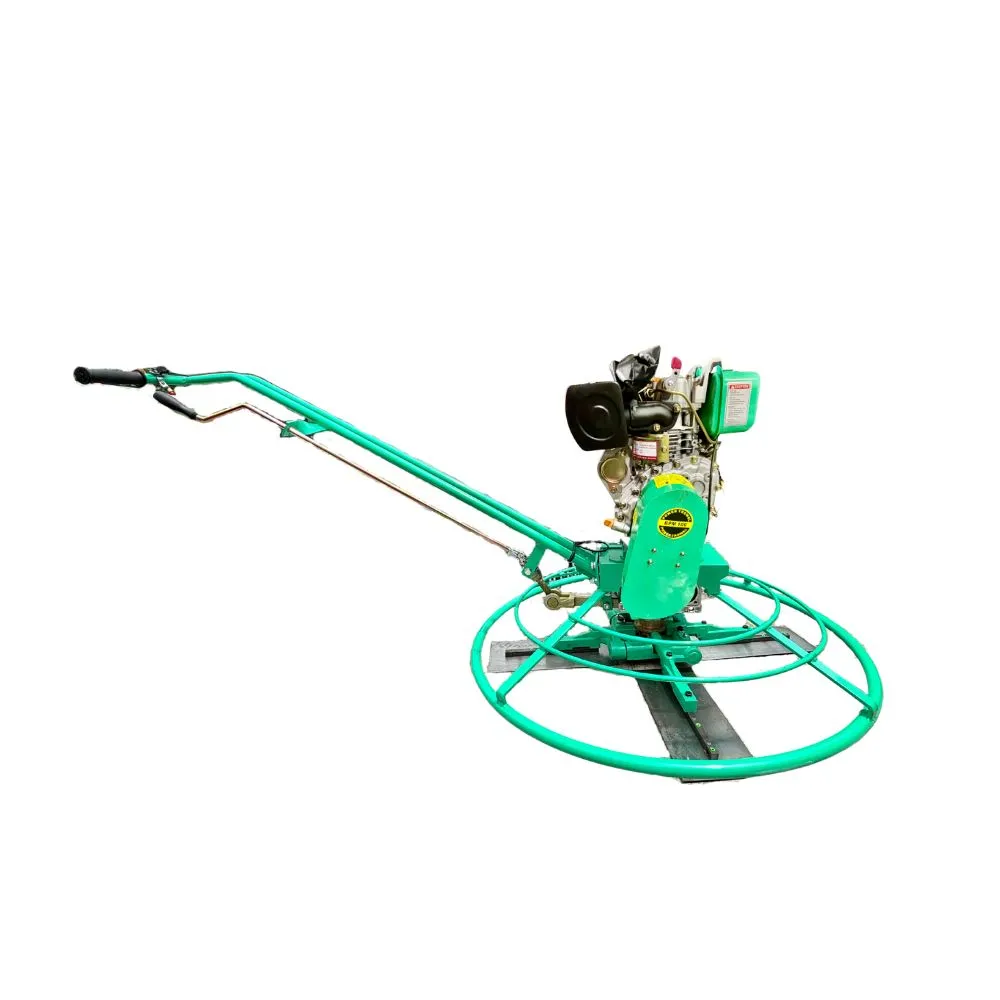

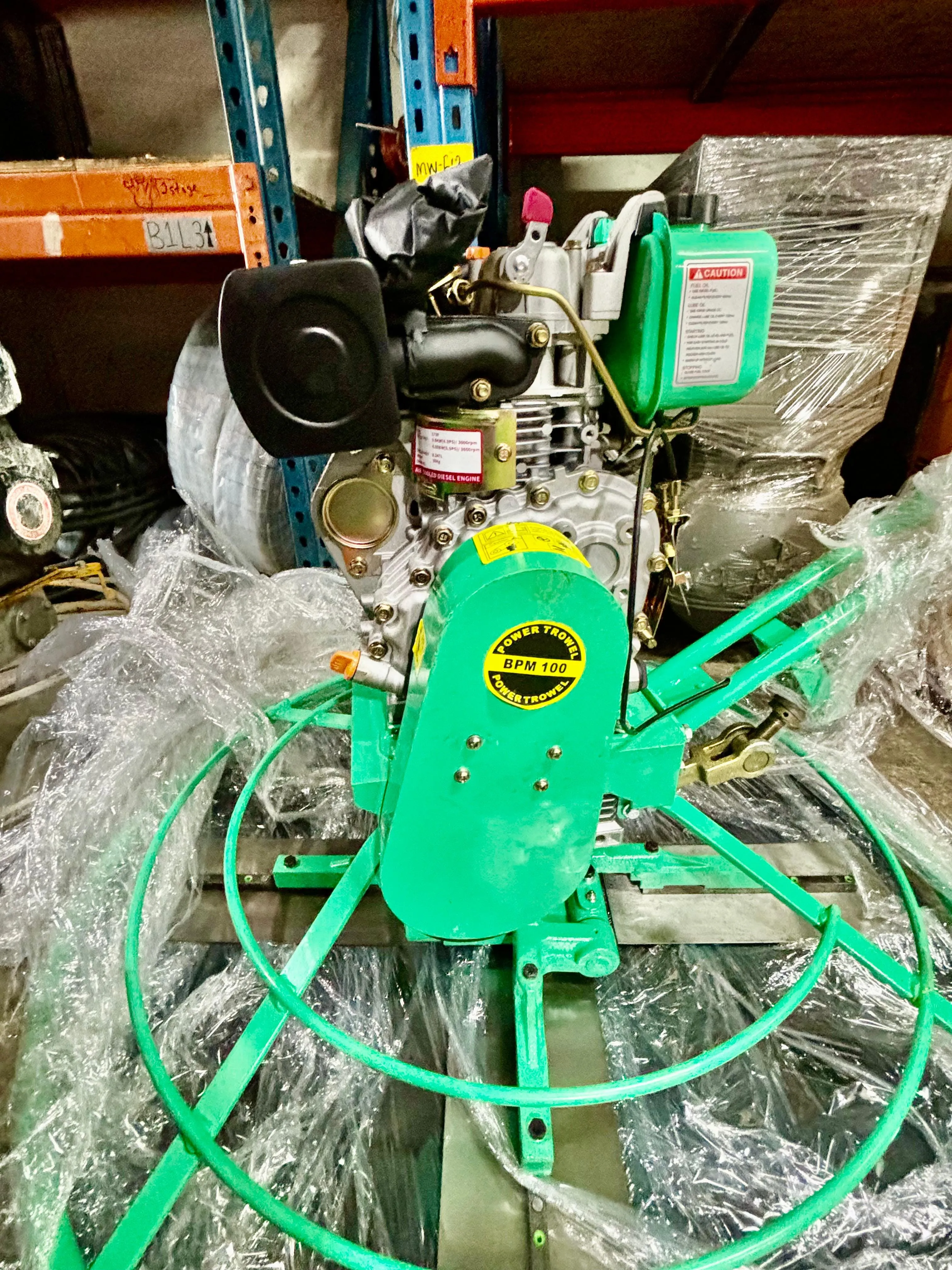

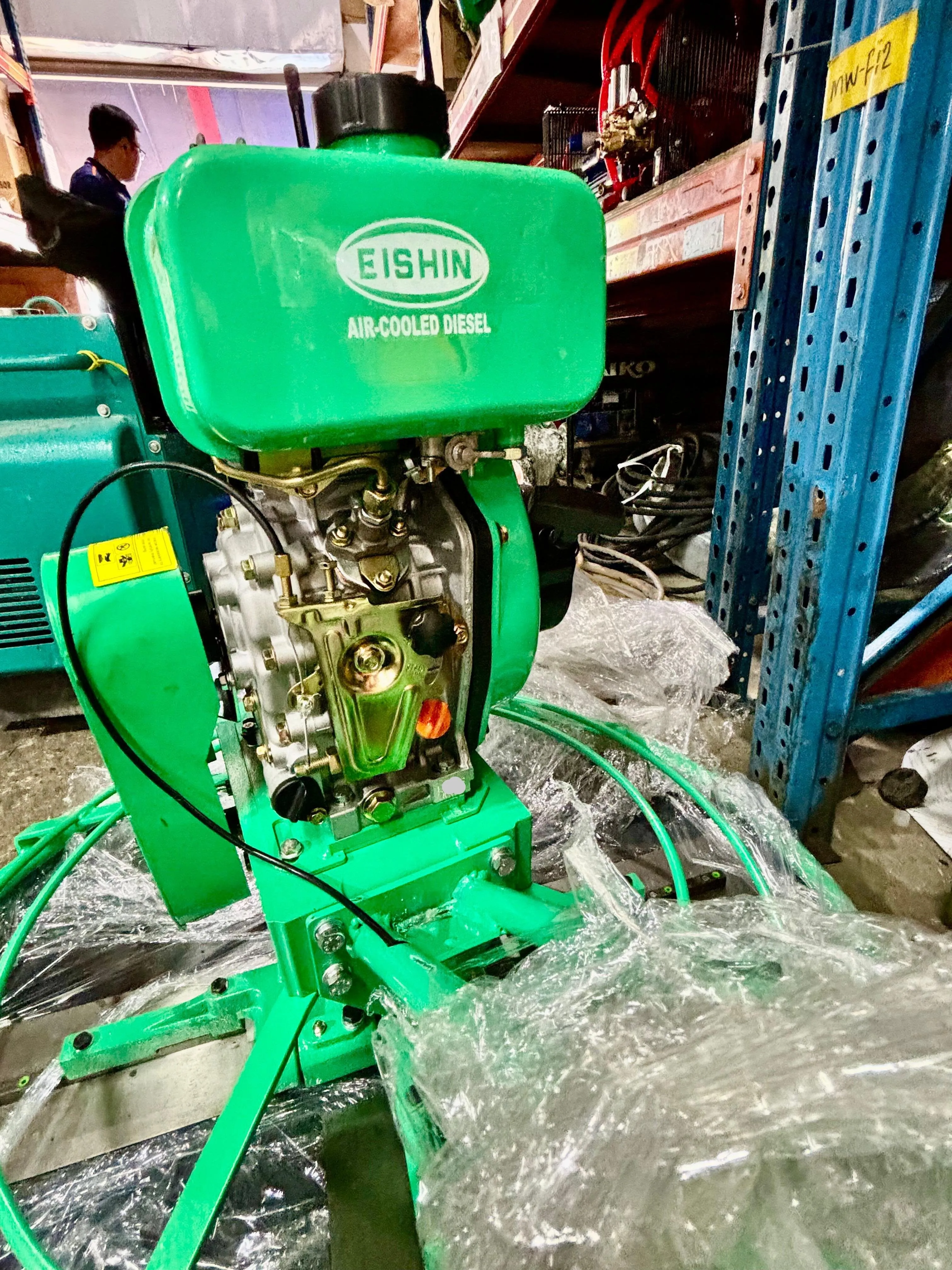

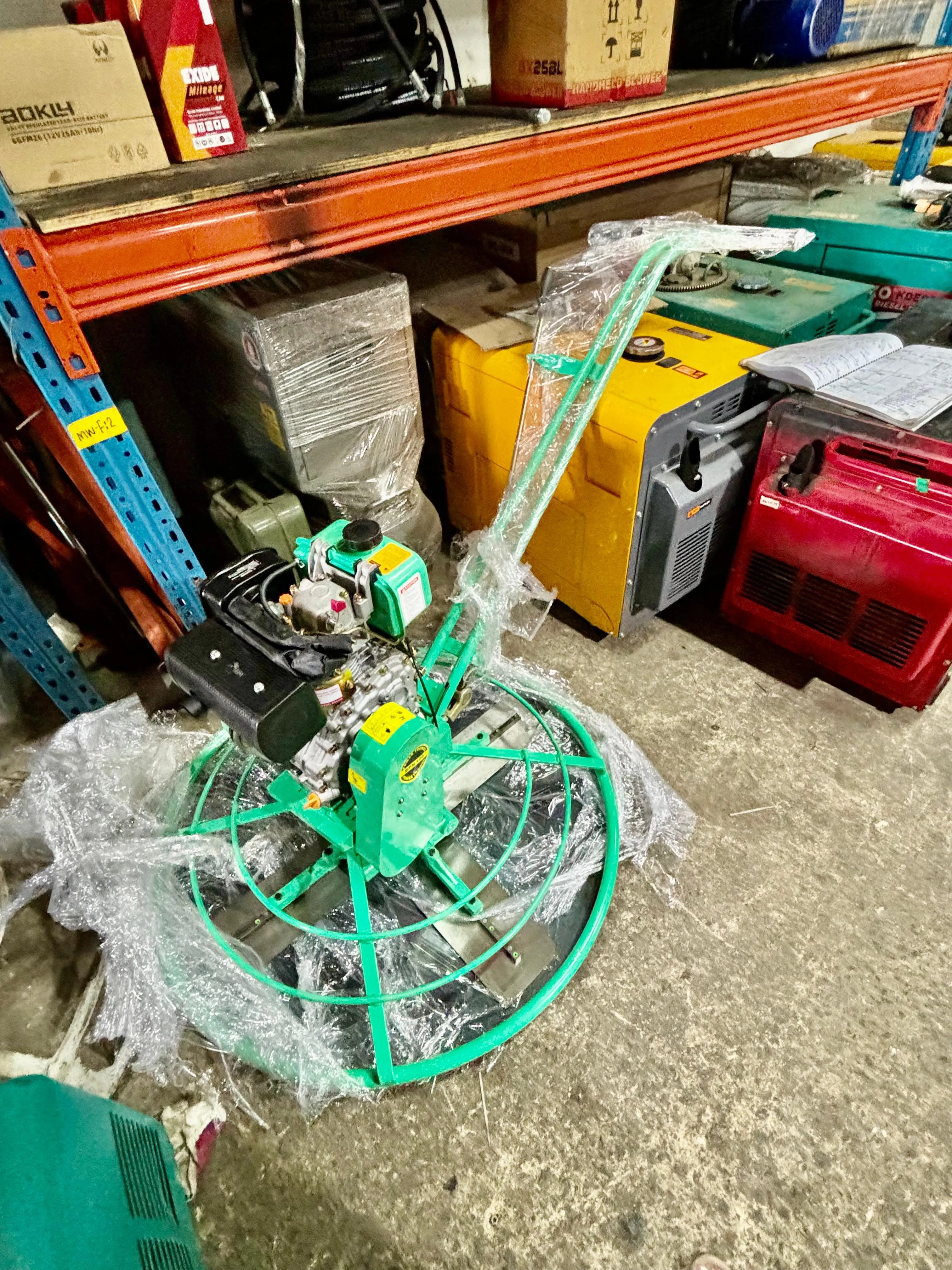

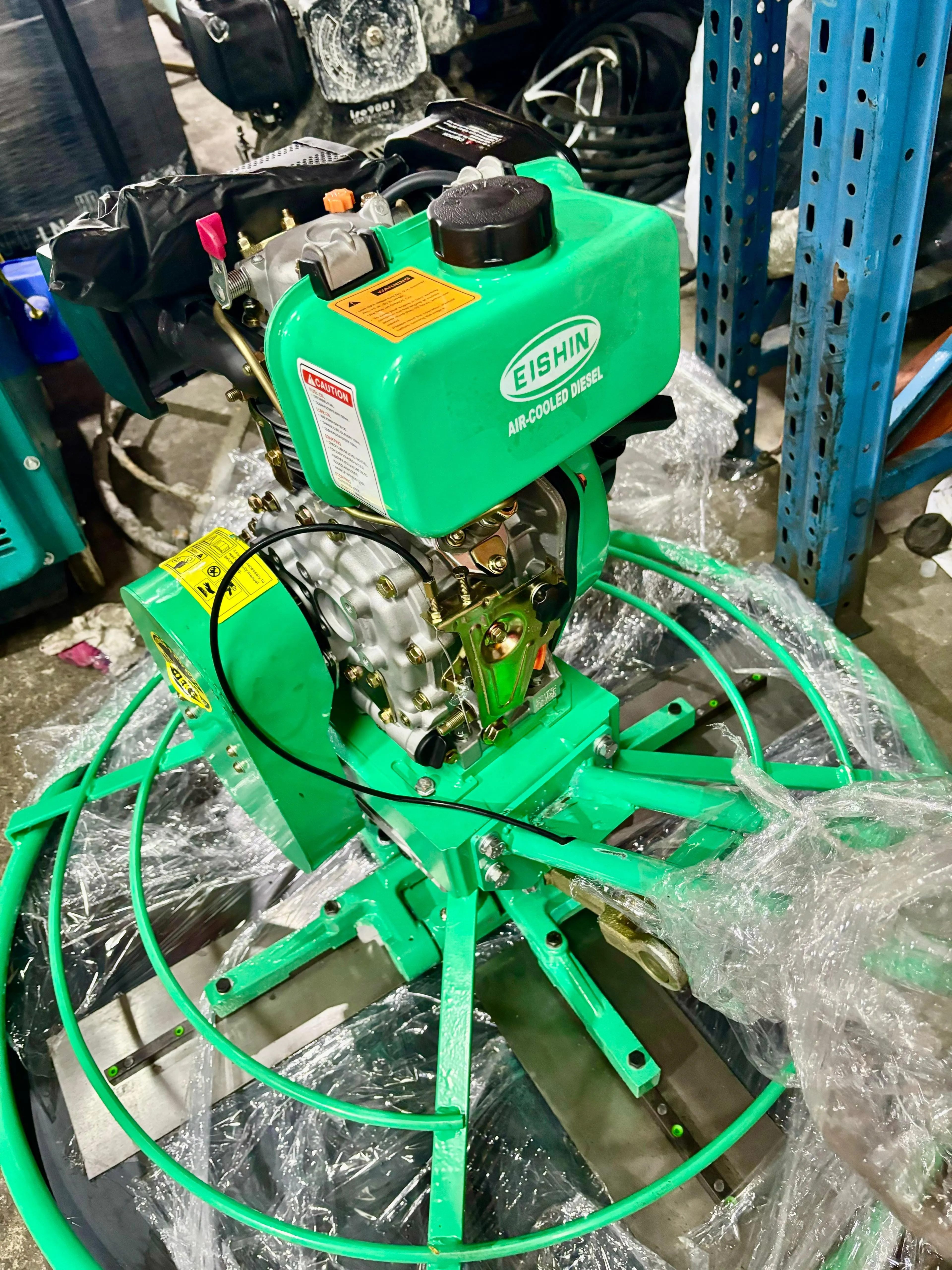

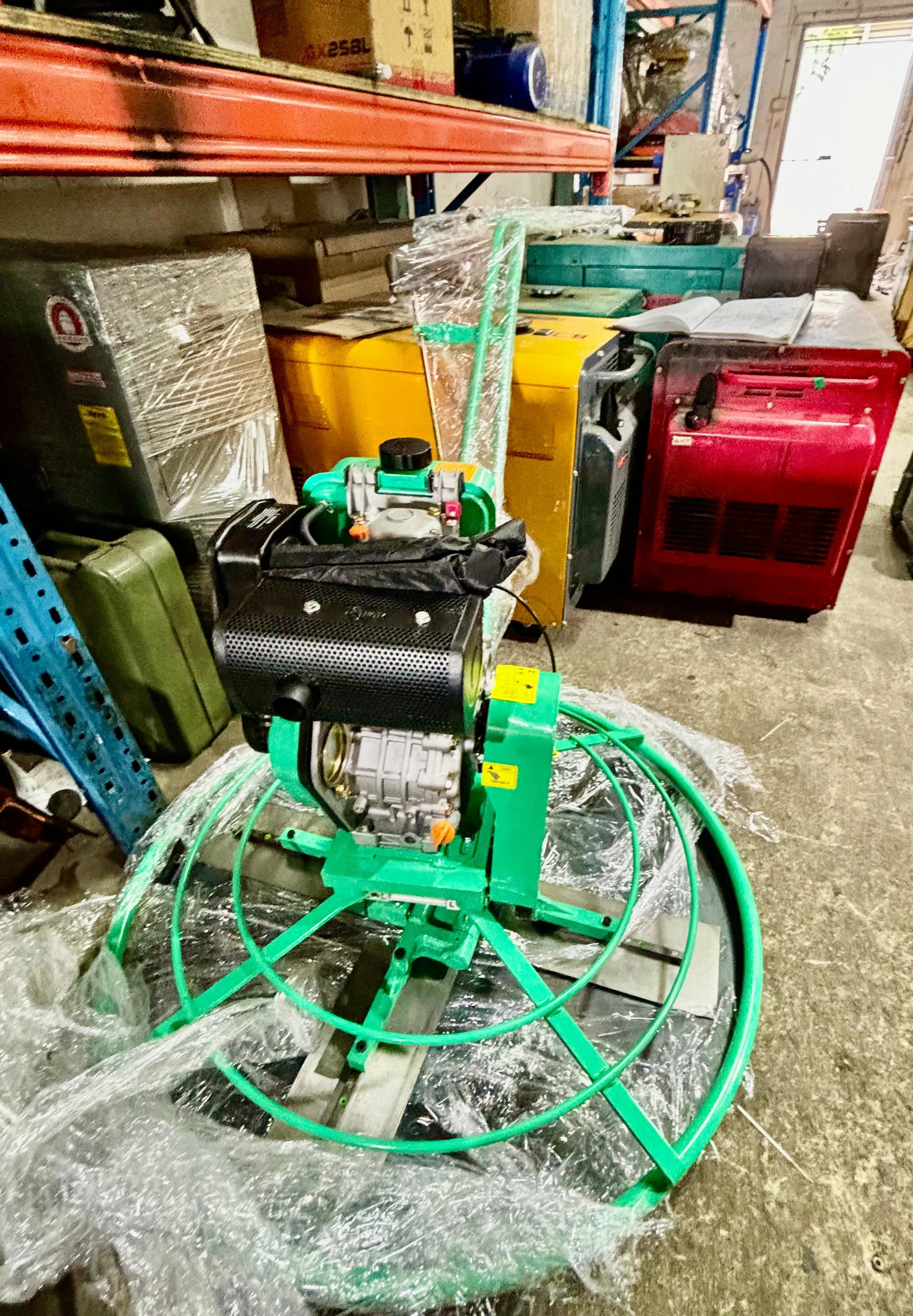

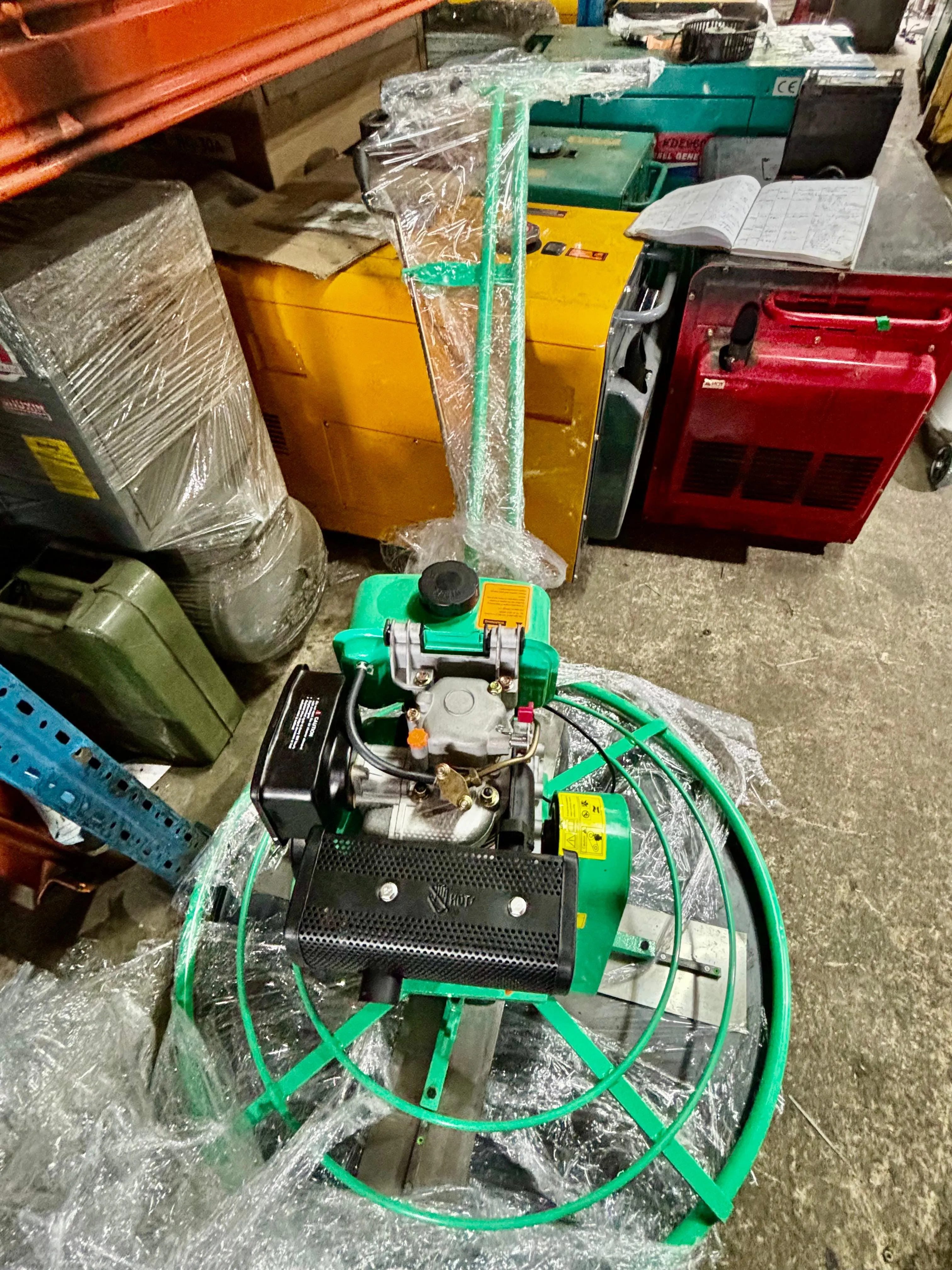

Aiko Power Trowel SM1000 With 173F Diesel (MKS Type) | Model : PTM-SM1000 173F
Specifications :
| Model | SM1000 |
| Weight | 76kg |
| Diameter | 1000mm |
| Driving Speed | 50-130 RPM |
| Blade Dimension | 350mmx150mm |
| Plate Thickness | 2.8cm |
| Model | 173F |
| Type | Air cool. 4-stroke. single. cylinder |
| BorexStroke | 73x59 |
| Displacement(ml) | 0.247 |
| Combustion system | Direct Injection |
| Output(kw/hp)rpm | 5.5/3600(4.05/3600) |
| Max. Output(kw/hp)rpm | 6.2/3600(4.6/3600) |
| Direction of rotation | Counter clockwise as viewed from P.T.O. shaft side |
| Fuel | 0#/-10# 0#(summer)/1 10#(winter) |
| Fuel tank capacity(L) | 2.5 |
| Lubricant oil capacity(L) | 0.75 |
| Starting system | Manual/ Electric start |
| Net Weight(kg) | 30 |
