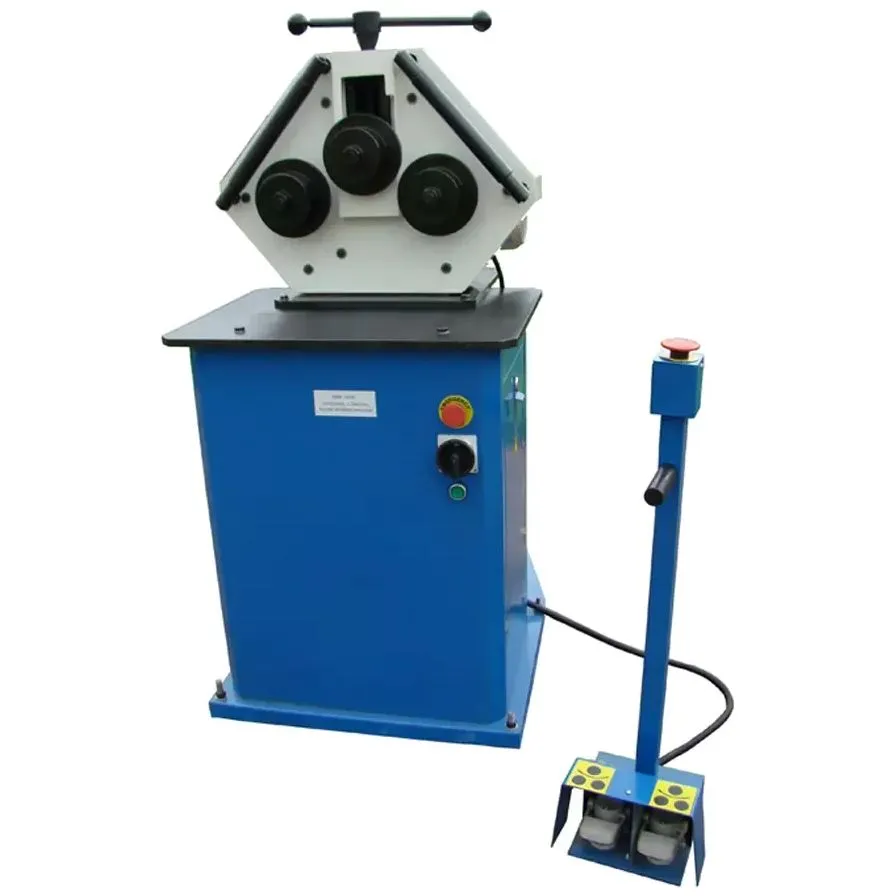

Aiko Round Bending Machine with 1.1kw. 30mm | Model : RBM30HV
Features :
Horizontal and vertical operation
With standard foot pedal
The Round bending machine features an electric three-roller-wheel structure.
It has the advantage of a two-axis drive. The upper axis can be moved up and down to adjust the diameter of the processed work piece.
It can conduct round bending processing for plates. T-shaped materials and so on.
The round bending machine has a standard roller wheel. of which the front two types of roller wheel can be used both vertically and horizontally.
The reversible pedal switch facilitates the operation.
Specifications :
Item No. | 391002 | ||
Model | RBM30HV | ||
Dia. Of roller | 30mm | ||
Power | 0.75kw/1HP. 415V 3 Phase | ||
Spindle speed | 9r/min | ||
Packing size | 120x75x121cm | ||
N.W./G.W. | 244/282kgs |
Accessories Included :
- Foot Pedal
- One set roller
