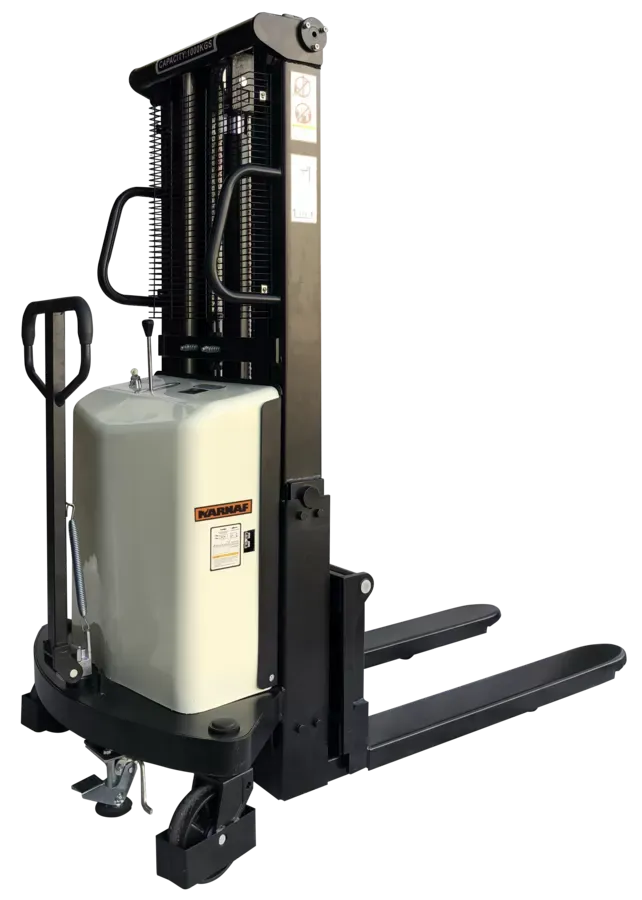

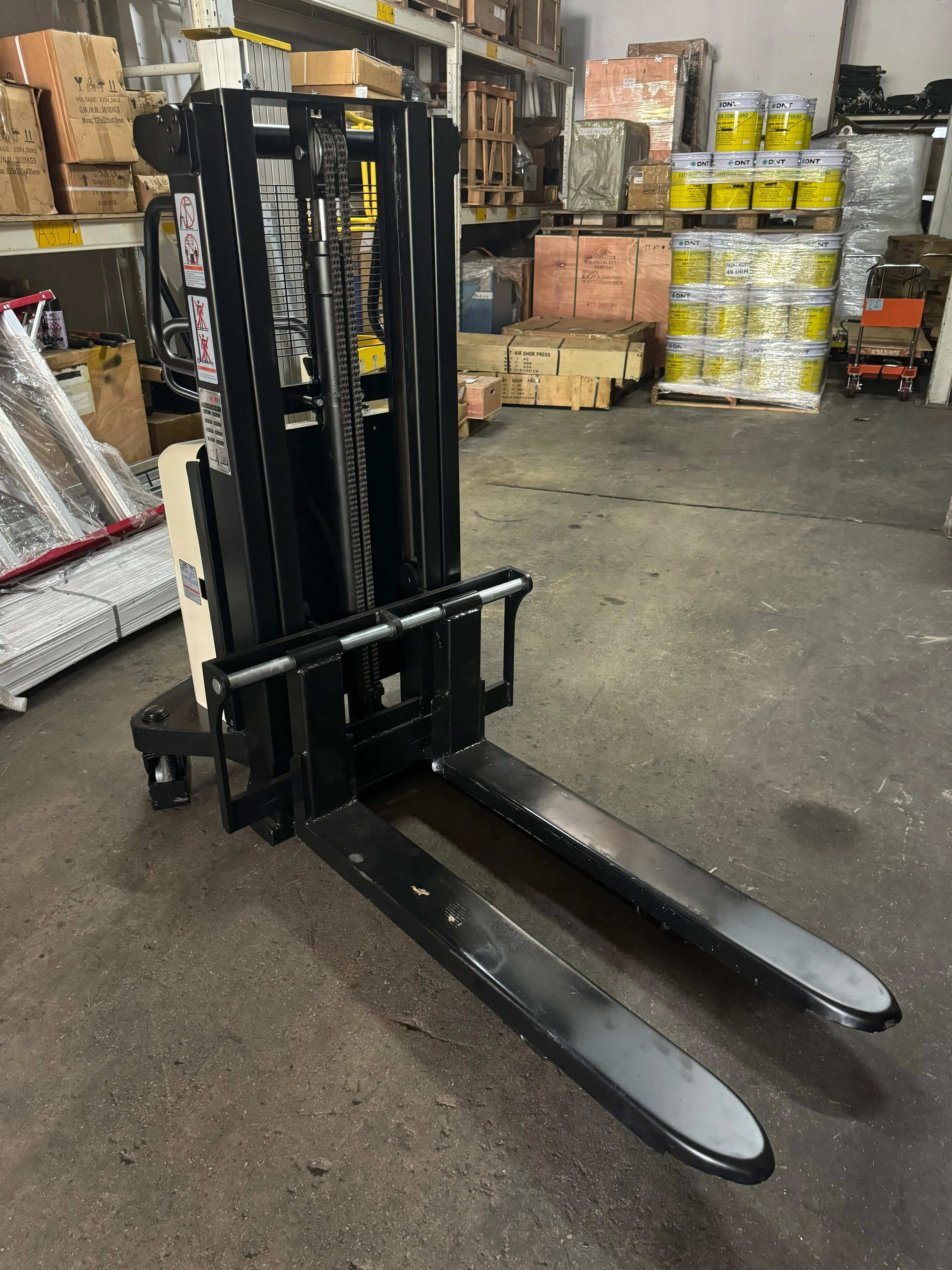

Aiko Semi-Electric Stacker 2 Ton 2M | Model : PT-WSEM-2020

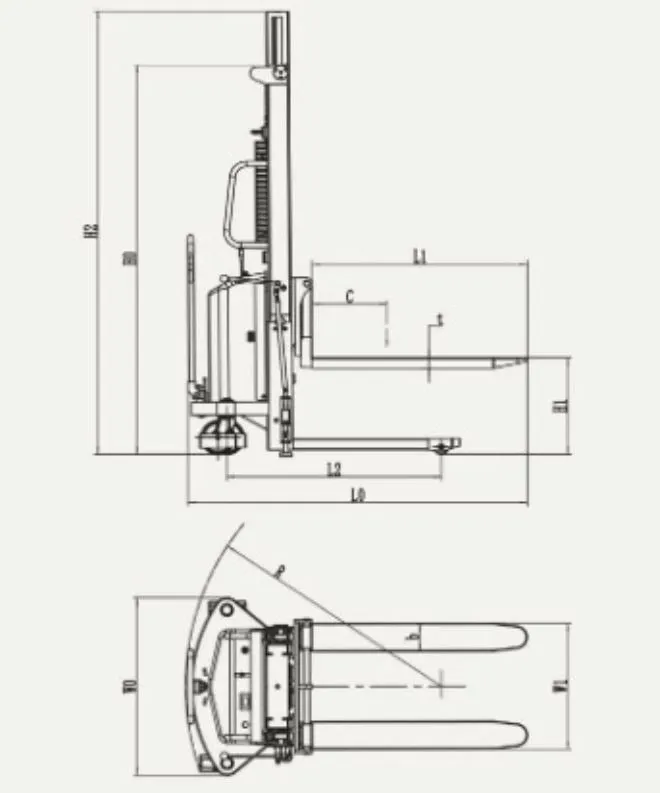

Specification :

• Capacity : 2000kg

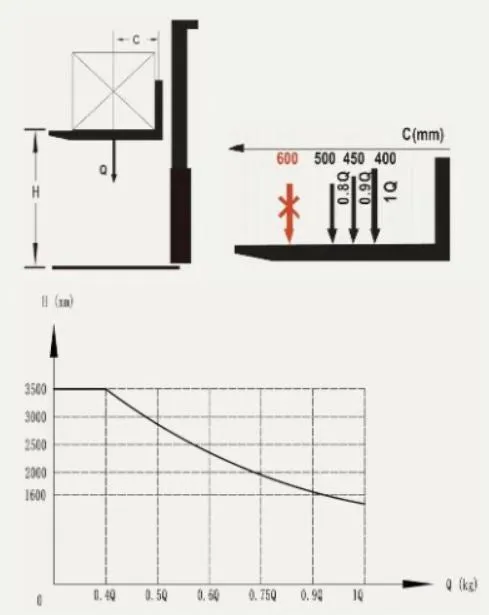

• Loading Center : 400mm
• Lifting Height (H1) : 2000mm
• Machine Height (H2) : 2540mm
• Fork Length (L1) : 1150mm
• Fork Size (W1) :160*55mm
• Wheel Base (L2) : 1145mm
• Turing Radius : 1365mm
• Aisle : 2280mm
• Min Fork Height : 90mm
• Lifting Speed : 75/116mm/s (load/unload)
• Releasing Speed : 70/56mm/s (load/unload)

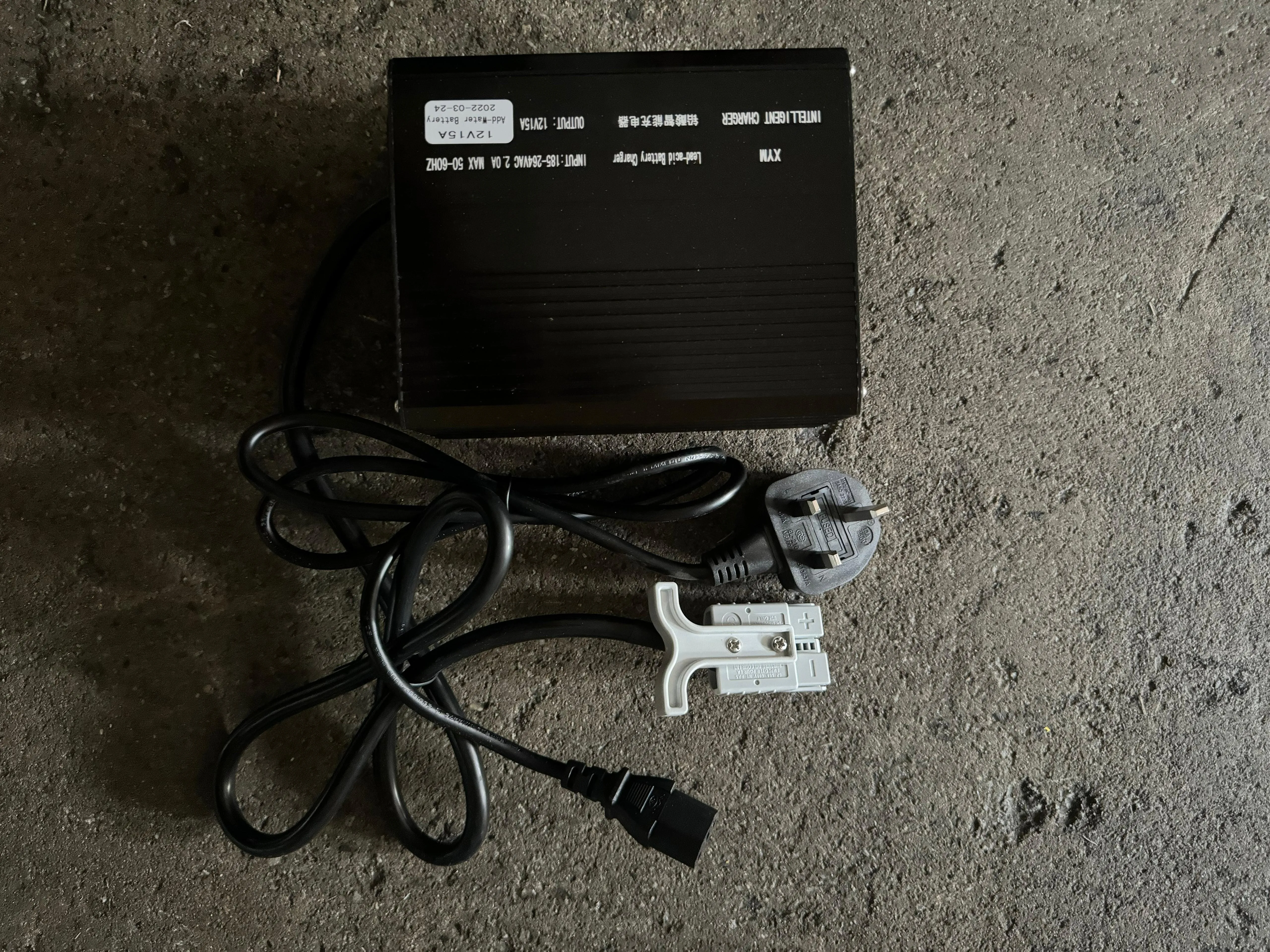

• Battery : 12V/120Ah
• Lifting Motor : 1.6kW
• Machine Length (L0) : 1815mm
• Machine Width (W0) : 940mm
• Machine Height (H0) : 1585mm
• G.W. : 470kg
