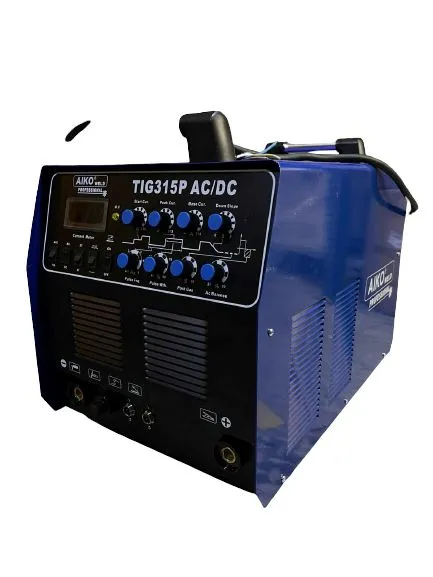

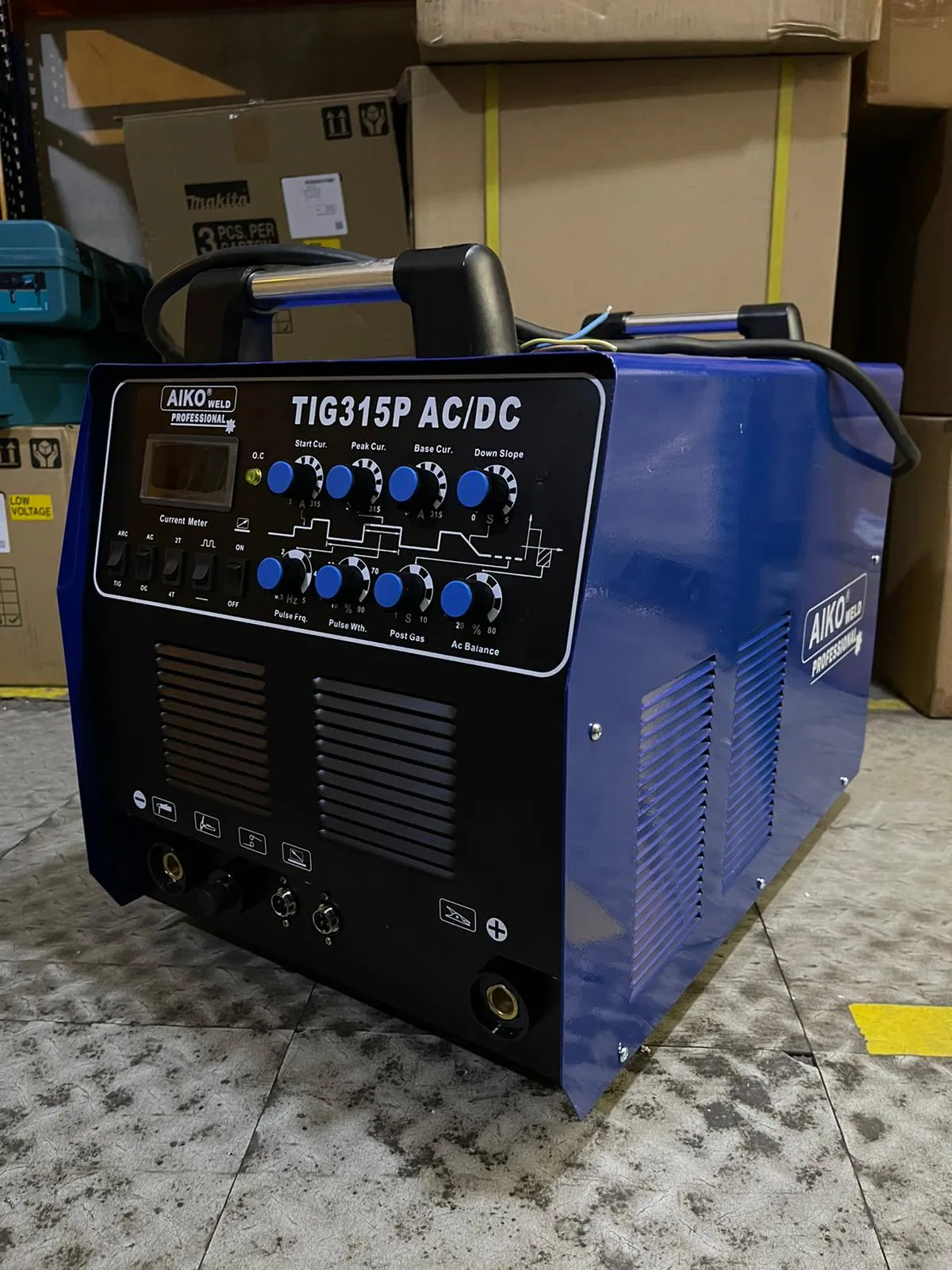

AIKOTig315P Ac/Dc Welding Set with 415V | Model : W-TIG315P-ACDC

Features :

• Applicable industries & Welding effect
• Ironware manufacturing
• Construction decoration
• Sheet Metal Factory
• Chemical pipeline installation and maintenance
• Pressure Vessel Manufacture
• The complete copper core eject reactor

• Strong power grid oscillation resistance. flat wave current

• More stable welding current output

• 96 ** 96 piece field tubes

• Imported Toshiba inverter field tube rectifier tube. enough current output

• Basic technology control circuit

• Good core. stable job

• Windproof double deck design

• Special wind-proof double-deck design. good welding machine. your best choice

• Stable welding current wave. bending success rate of high

Specifications :

• Model : TIG315PAC/DC
• Rated input voltage : Three Phase AC380V 15%
• Input Frequency : 50/60 Hz
• Rated Input Power : 13/12 KVA
• Current and Voltage Regulation range
• 12/10.5-300/22 A/V
• 15/20.6-240/29.6 A/V
• Rated duty cycle : 60%
• No - Load voltage : 70 V
• No- Load Loss : 100 W
• Arc Striking Method : High Frequency arc ignition
• Efficiency : 85 %
• Power Factor : 0.93
• Insulation Grade : F
• Enclosure Protection Class : IP21
• Weight : 38 KG
• Size : 616 x 325 x 638 mm
