Product Details
＋

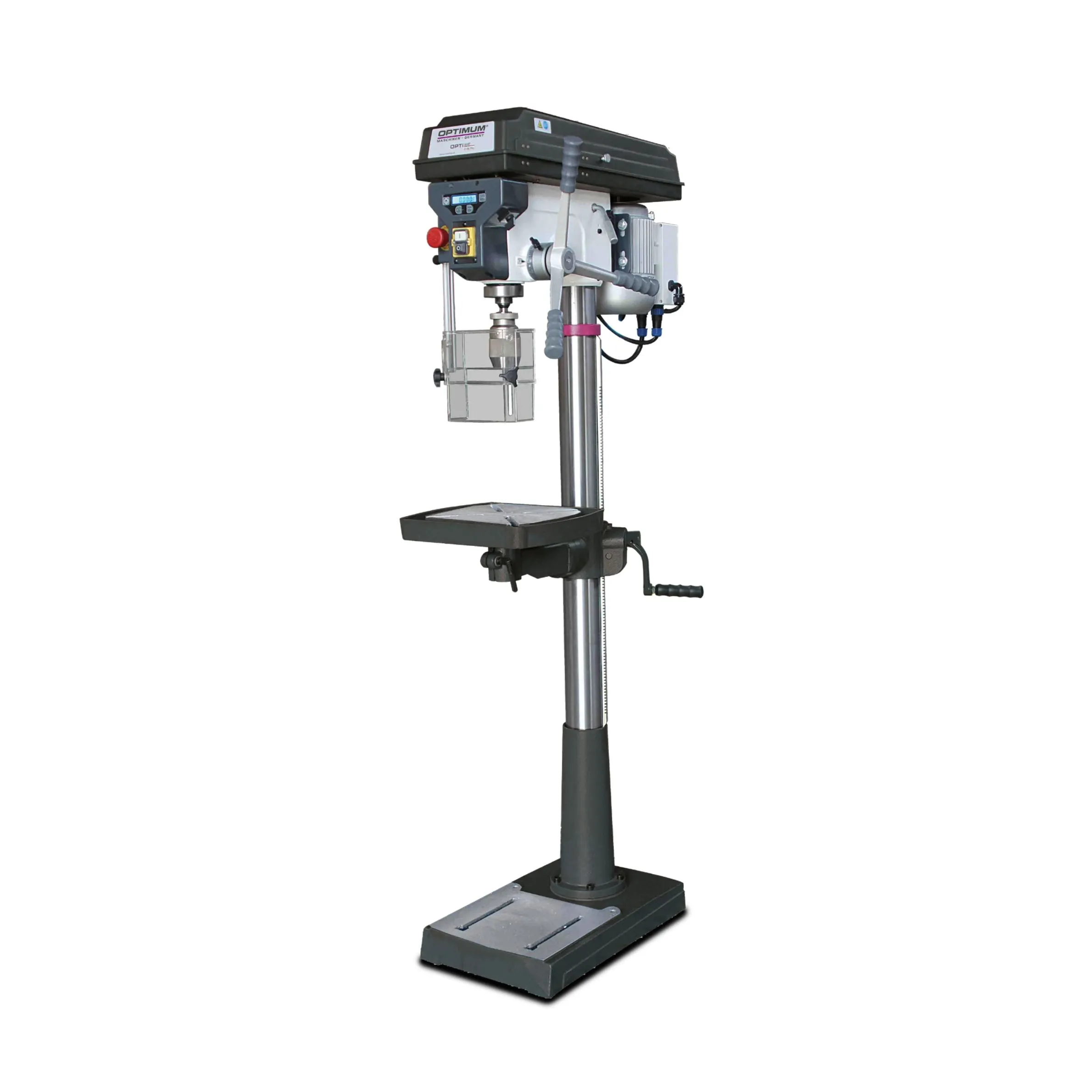

Optimum Bench Drill 1 Phase 230V Motor 750W Max Drilling 25mm| Model: D26PRO

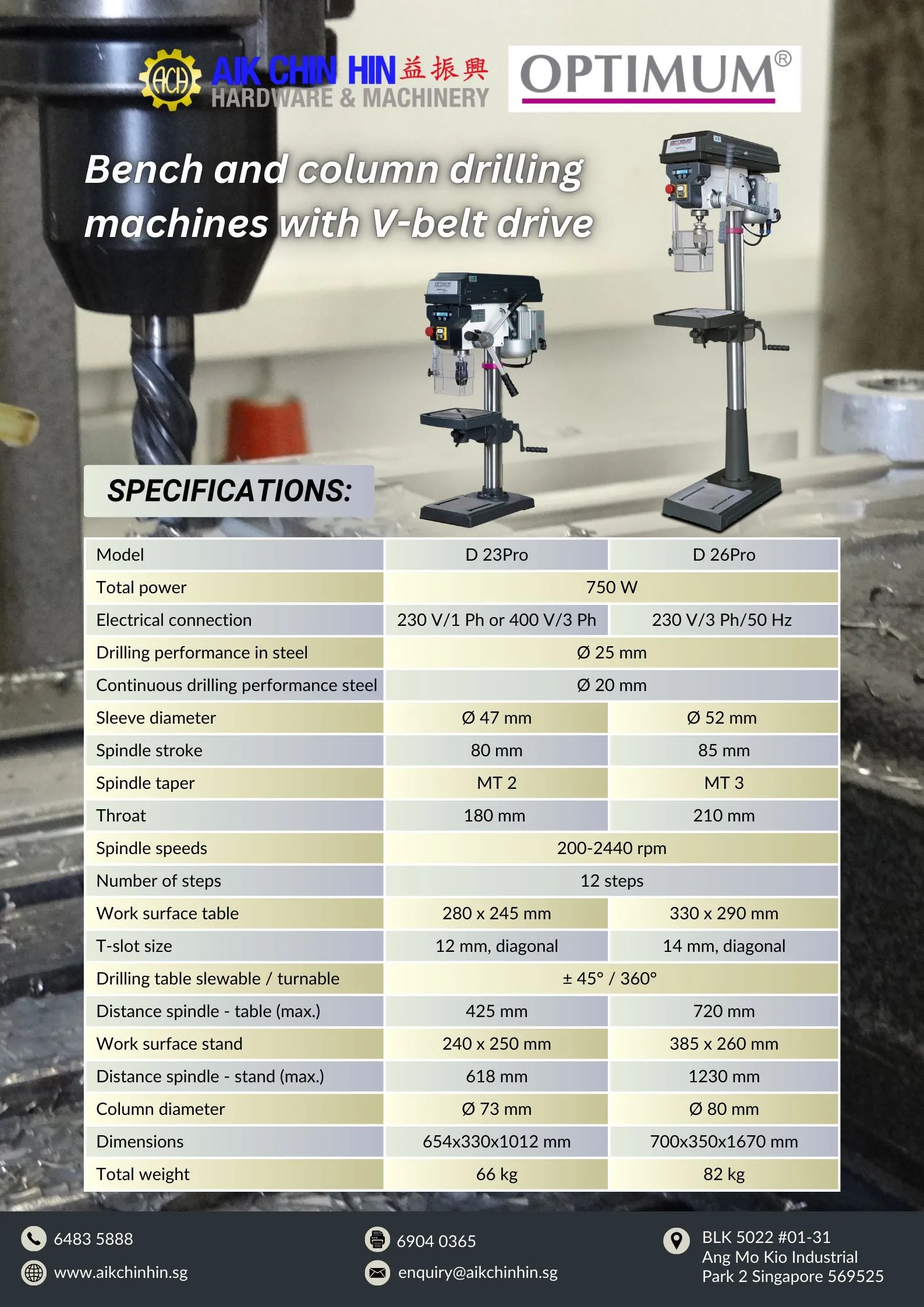

Specification:
| Model | D 26Pro |
| Total power | 750 W |
| Electrical connection | 230 V/3 Ph/50 Hz |
| Drilling performance in steel | 25 mm |
| Continuous drilling performance steel | 20 mm |
| Sleeve diameter | 52 mm |
| Spindle stroke | 85 mm |
| Spindle taper | MT 3 |
| Throat | 210 mm |
| Spindle speeds | 200-2440 rpm |
| Number of steps | 12 steps |
| Work surface table | 330 x 290 mm |
| T-slot size | 14 mm. diagonal |
| Drilling table slewable / turnable | 45 / 360 |
| Distance spindle - table (max.) | 720 mm |
| Work surface stand | 385 x 260 mm |
| Distance spindle - stand (max.) | 1230 mm |
| Column diameter | 80 mm |
| Dimensions | 700x350x1670 mm |
| Total weight | 82 kg |
