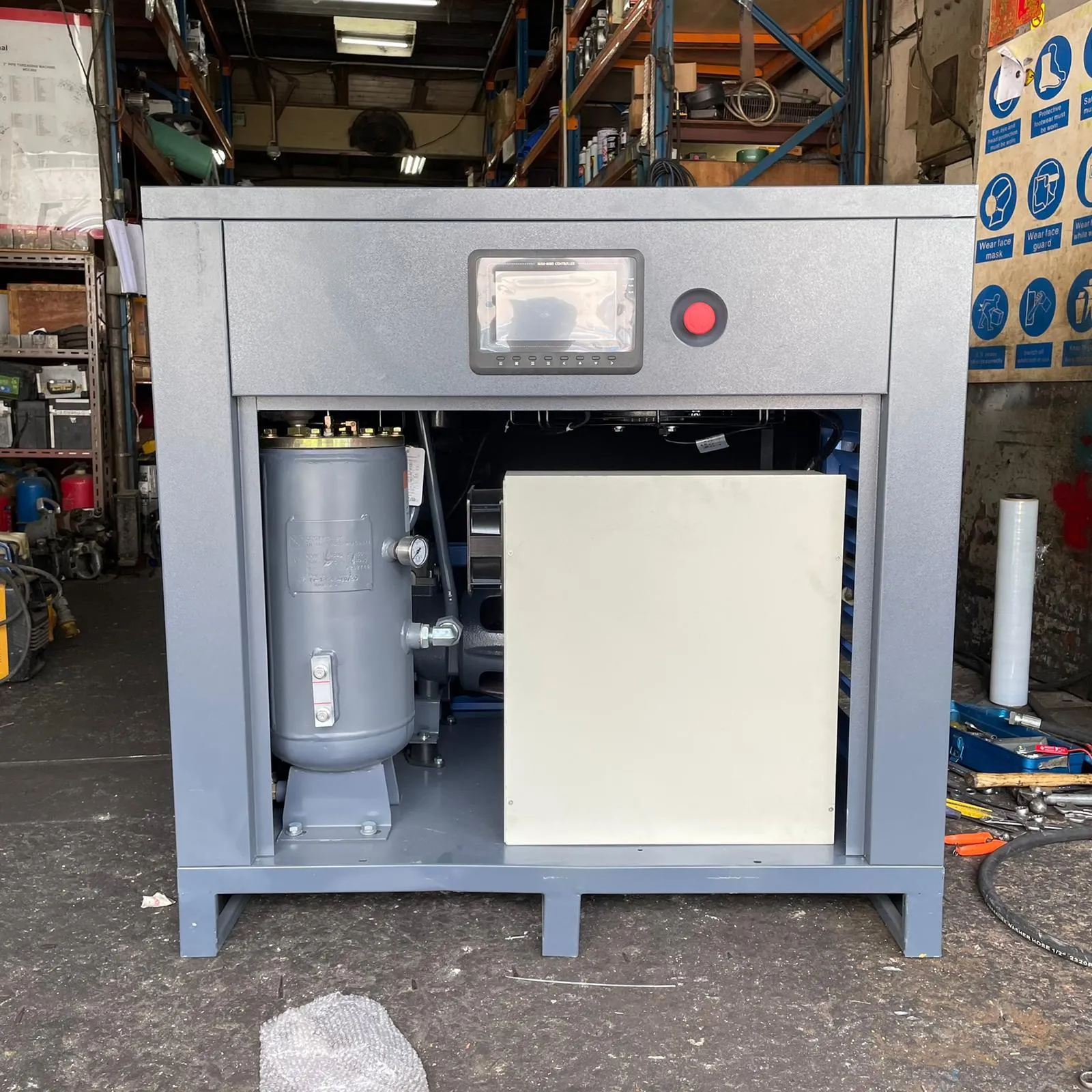

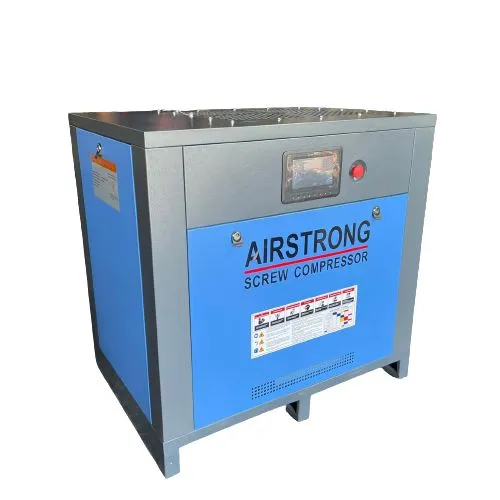

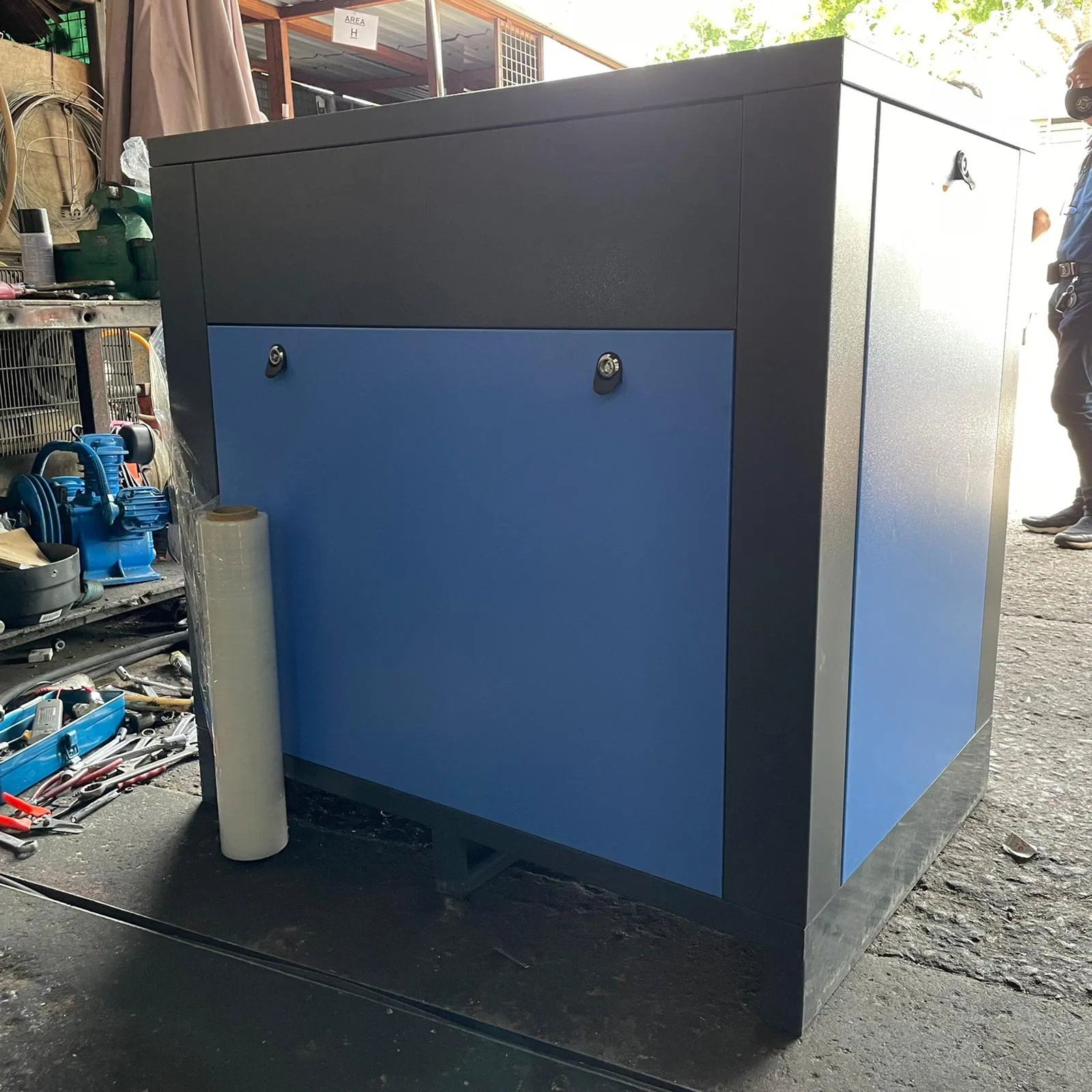

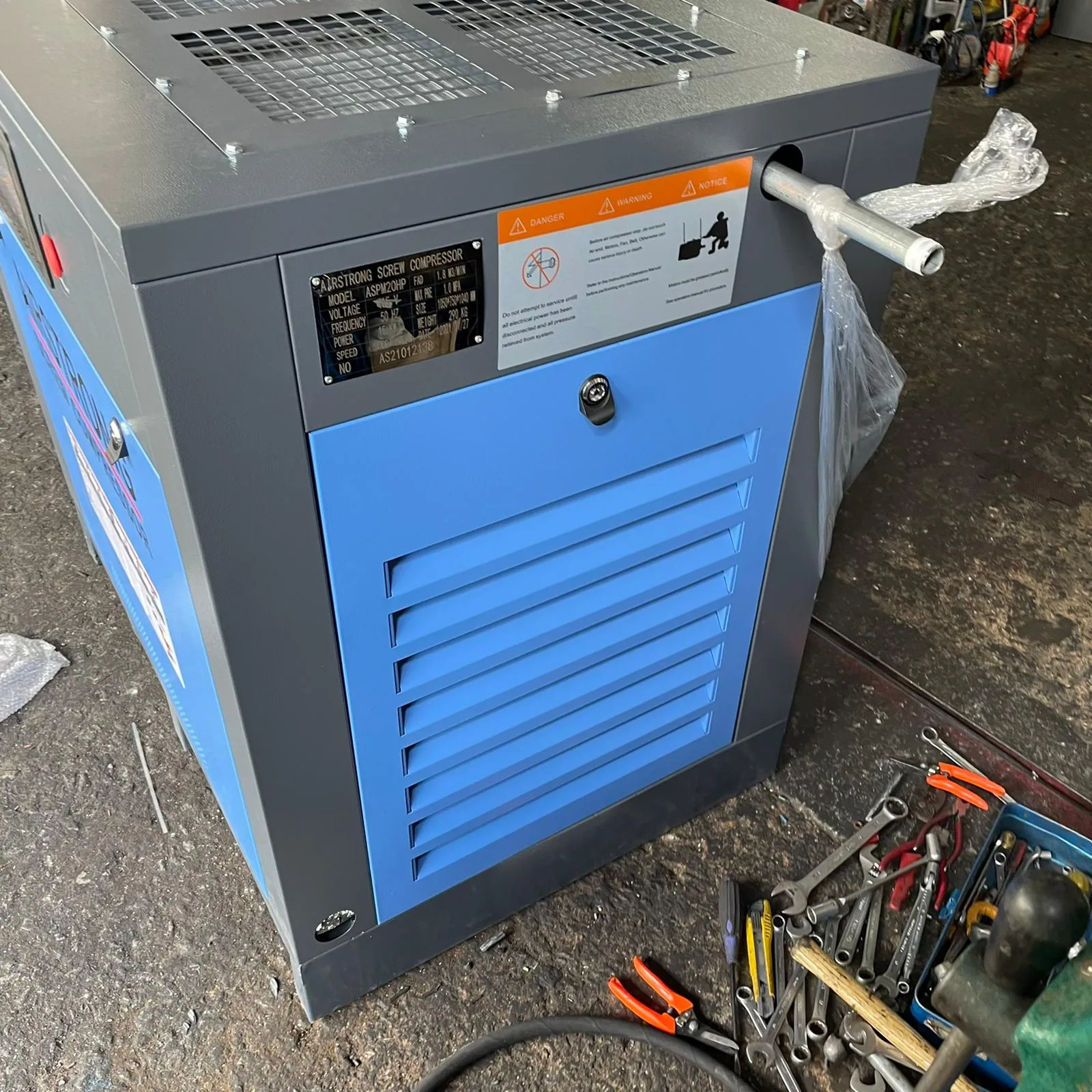

Airstrong ASPM30HP Rotary Inverter Screw Air Compressor with 415V. 30Hp. 10 Bar | Model : A-ASPM30HP
Email us or Call us at 6483 5888 to request for quote

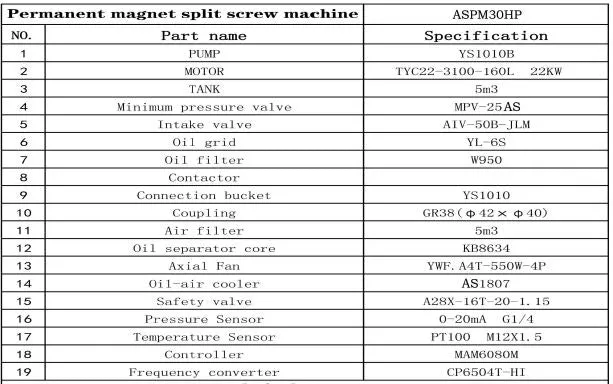

Specifications :
- Permanent Magnet Split Screw Machine
- Model :ASPM30HP
- Pump : YS1010B

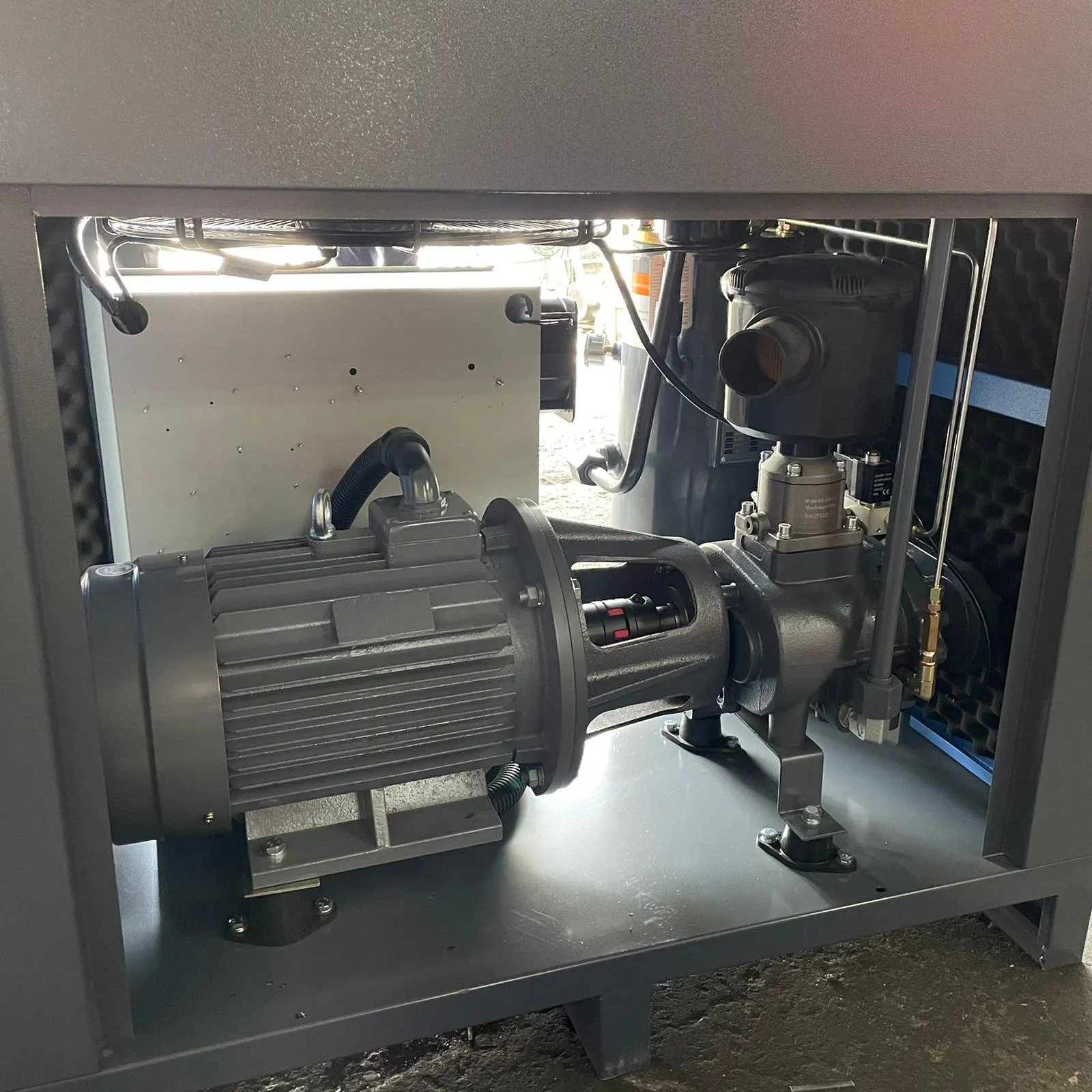

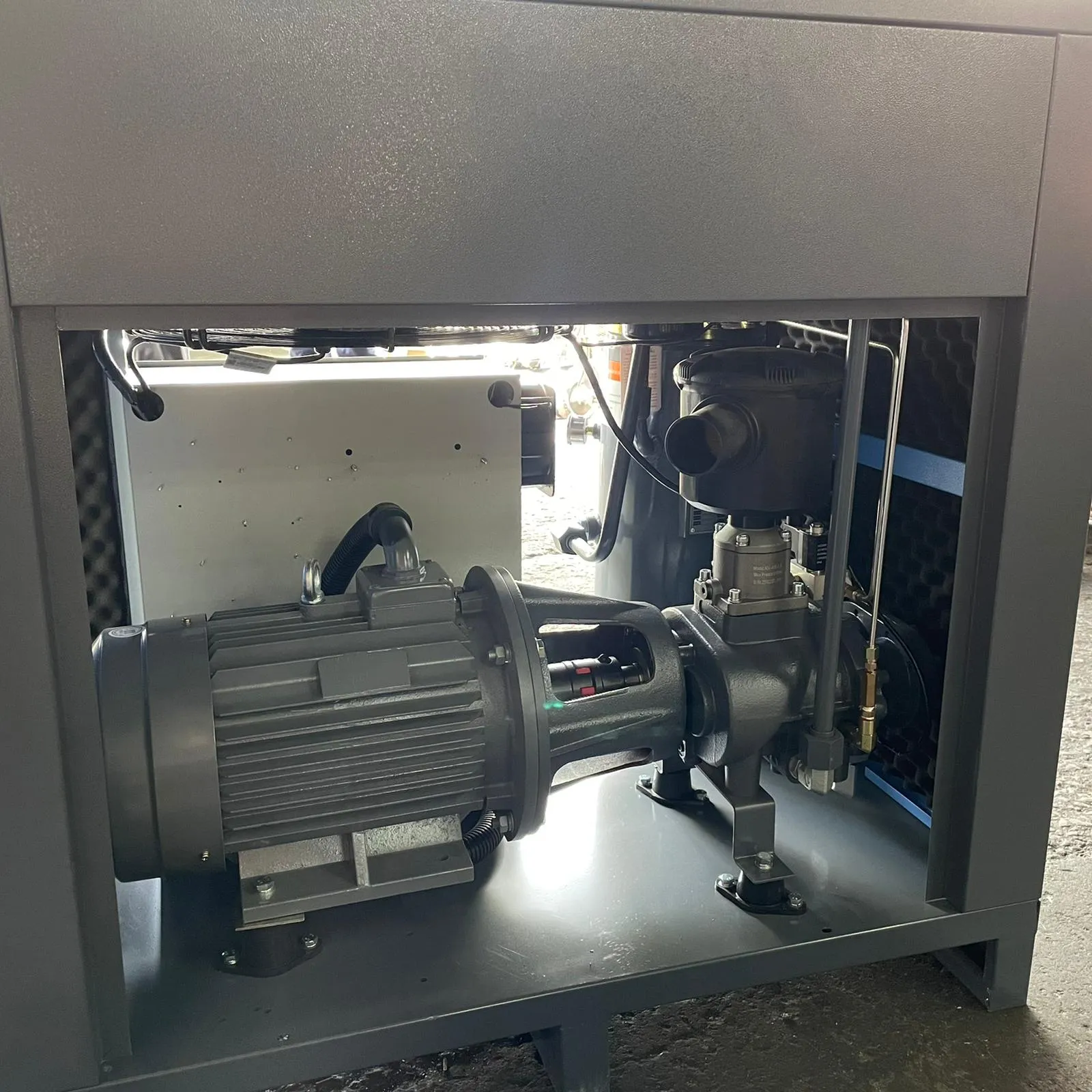

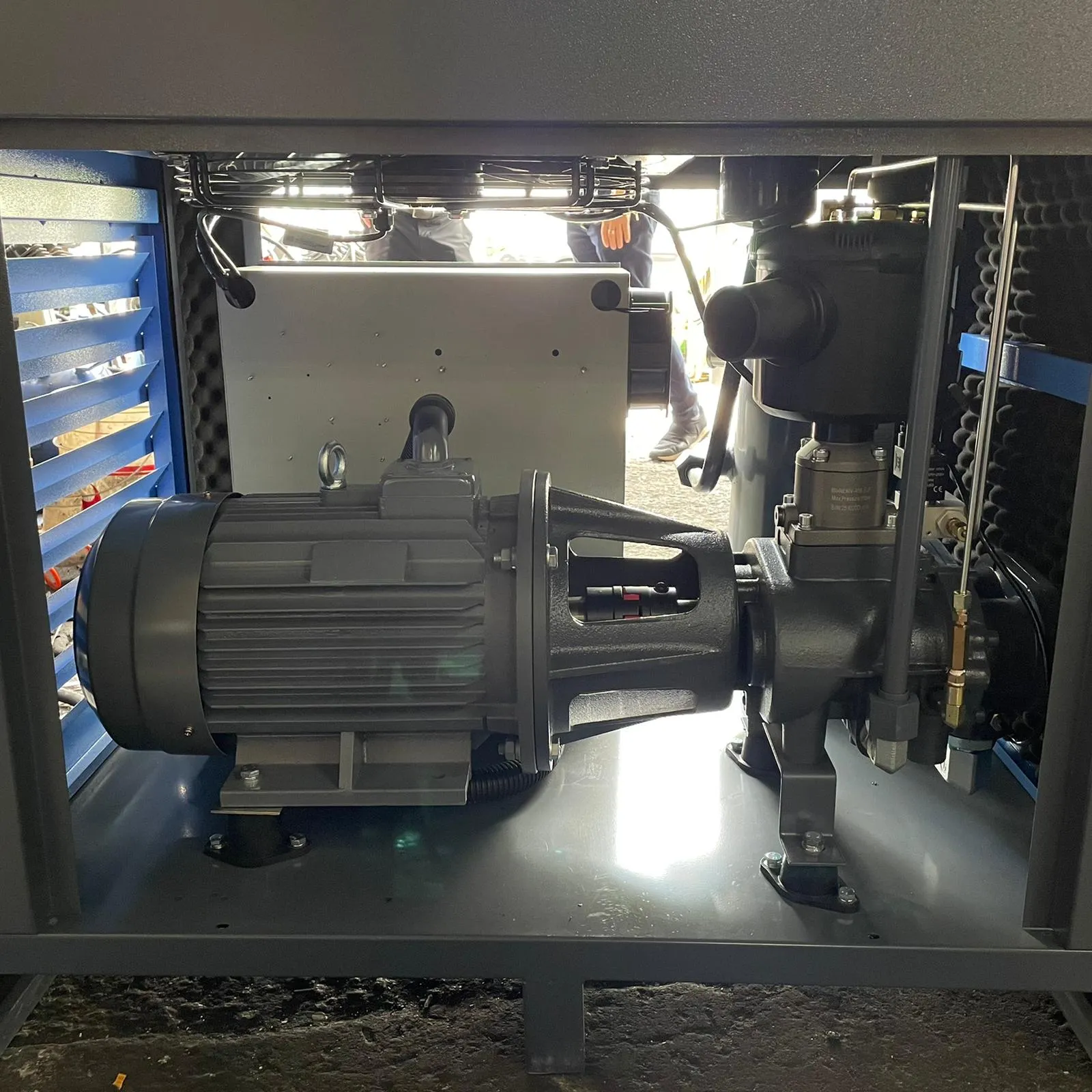

- Motor : TYC22 - 3100 - 160 L . 22 Kw

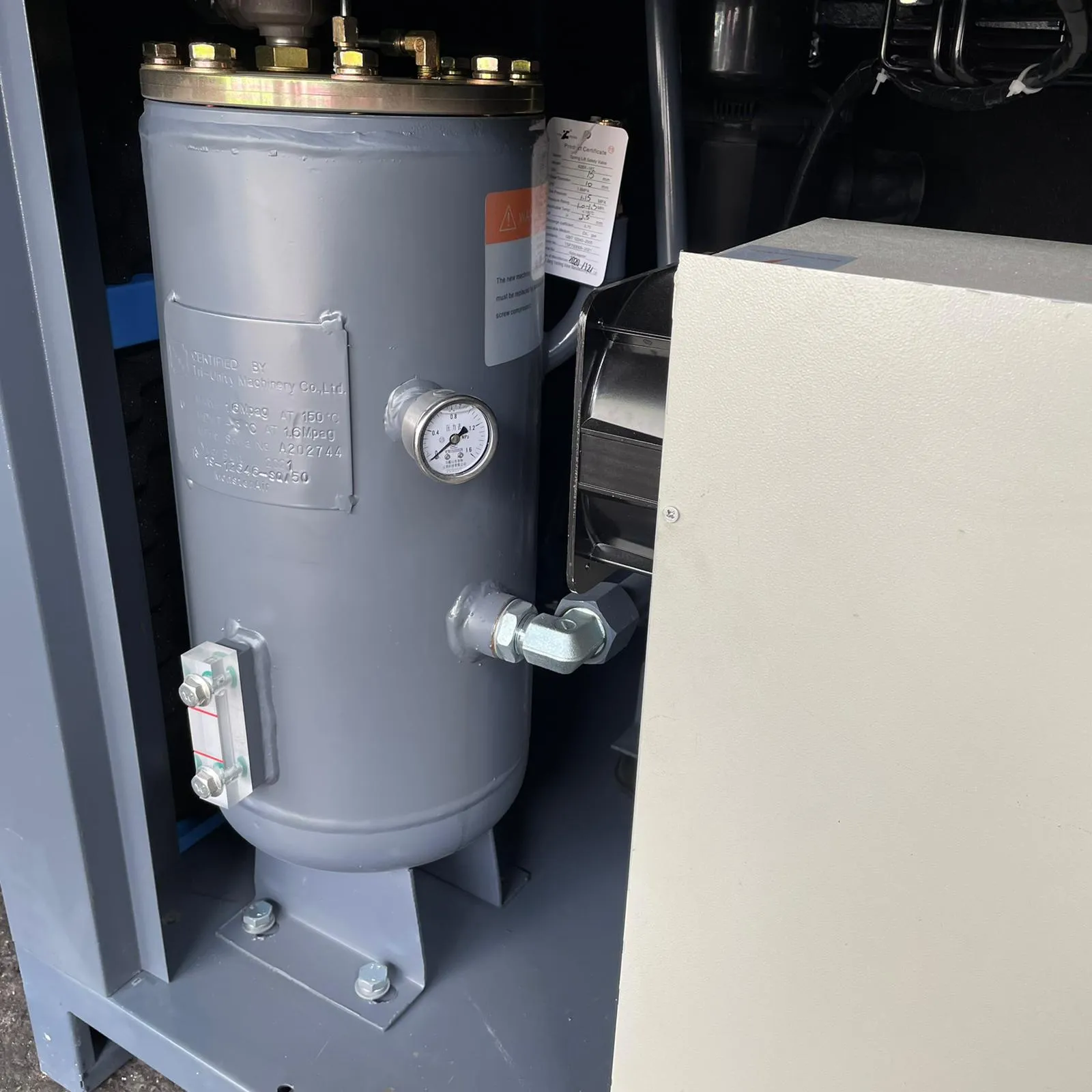

- Tank : 5m3
- Minimum Pressure Valve : MPV-25AS

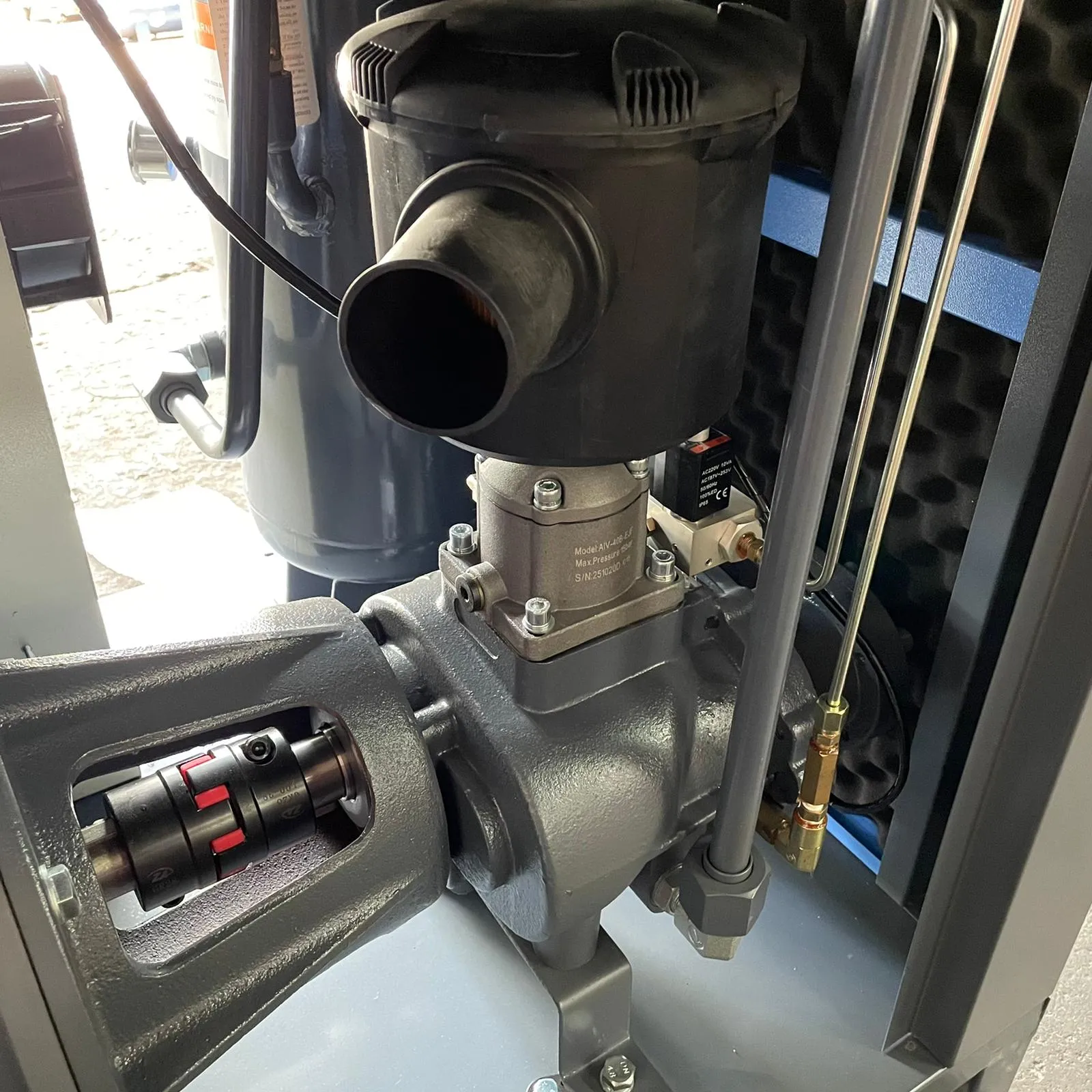

- Intake Valve : AIV-50B-JLM
- Oil Grid : YL-6S
- Oil Filter : W950
- Contractor
- Connection Bucket : YS1010S
- Coupling : GR38 (42 X42)
- Air Filter : 5 m3
- Oil Separator core : KB8634
- Axial Fan : YWF. A4T-550W-4P
- Oil - Air Cooler : AS1807
- Safety Valve : A28X - 16T - 20 - 1.15
- Pressure Sensor : 0-20 mA . G1/4
- Temperature Sensor : PT100 . M12X1.5
- Controller : MAM6080M
- Frequency Converter : CP6504T-HI

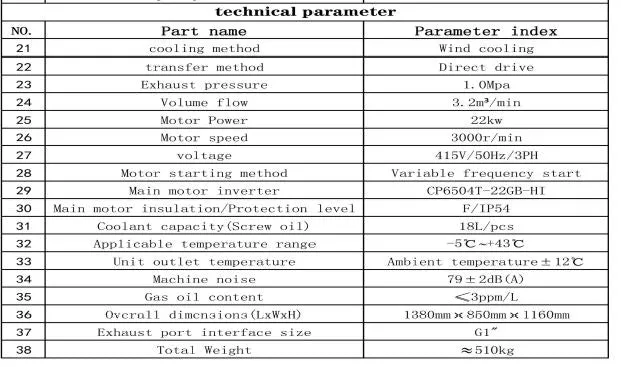

- Technical Parameter
- Part Name : Parameter Index
- Cooling Method : Wind Cooling
- Transfer Method : Direct Drive
- Exhaust Pressure : 1.0 Mpn
- Volume Flow : 3.2 m/min
- Motor Power : 22 kw
- Motor Speed : 3000r/min
- Voltage : 415 V / 50 Hz / 3 PH
- Motor Starting Method : Variable Frequency Start
- Main Motor Inverter : CP6504T - 22GB - HI
- Main Motor insulation/Protection Level : F / IP54
- Coolant Capacity : 18L/pcs (Screw Oil)
- Applicable Temperature Range : -5C ~ 43C
- Unit Outlet Temperature : Ambient Temperature
- Machine Noise : 79 2dB (A)
- Gas Oil Content : <3ppm / L
- Overall Dimensions : 1380 x 850 x 1160 mm
- Exhaust Port Interface Size : G1
- Total Weight : ~~ 510 kg
