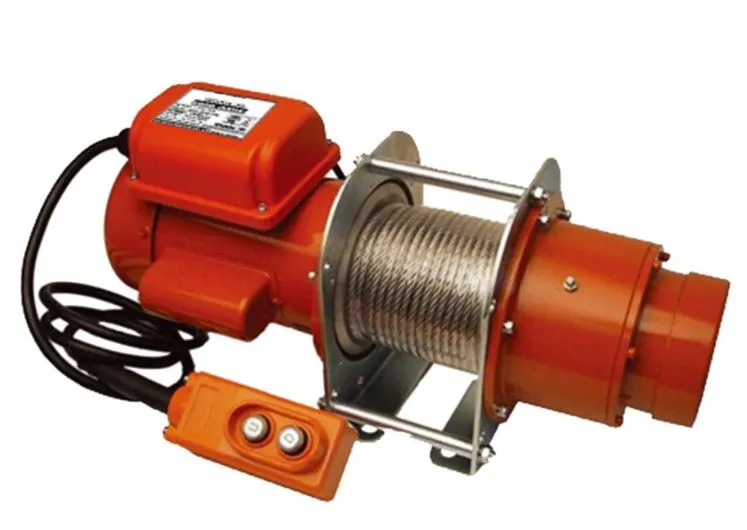

Duke Winch 230V Electric Wire Rope Winch 350Kg 7mm X 45m | Model : WIN-DU208

Features :

• Fit for various workplace applications. such as general factories. warehouse. construction. plumbing. and agriculture industries.
• Traditional table winch. high durability for both lifting and pulling applications.

• Induction motor provides high duty work and quiet running volume.

• Heavy duty high efficiency ball bearing on all running surfaces.

• Fabricated steel drum.

• Planetary gearing design guarantees a powerful loanability and durable lifetime usage.

• Enclosed drum flange to prevent rope from trapped between drum and support castings.

• 200kg - 500kg winches are eligible to install with an upper hanger for overhung applications.

Specifications :

• Capacity : 350 kg
• Voltage : 230V
• Speed : 15 m/min
• Motor :
• Capacity : 1.5 hp
• Type : Induction
• Wire Rope : 7mm
• Wire Rope Lift : 45 m
• Brake Disc
• � : 40%
• IP : 51
• FEM : 2m
• Net Weight : 42 kgs
• Gross Weight : 43 kgs

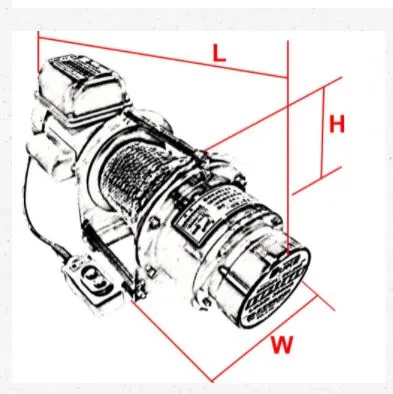

• Winch body : 585 x 201 x 233 mm
• Package Box : 640 x 250 x 310 mm
