Product Details
＋

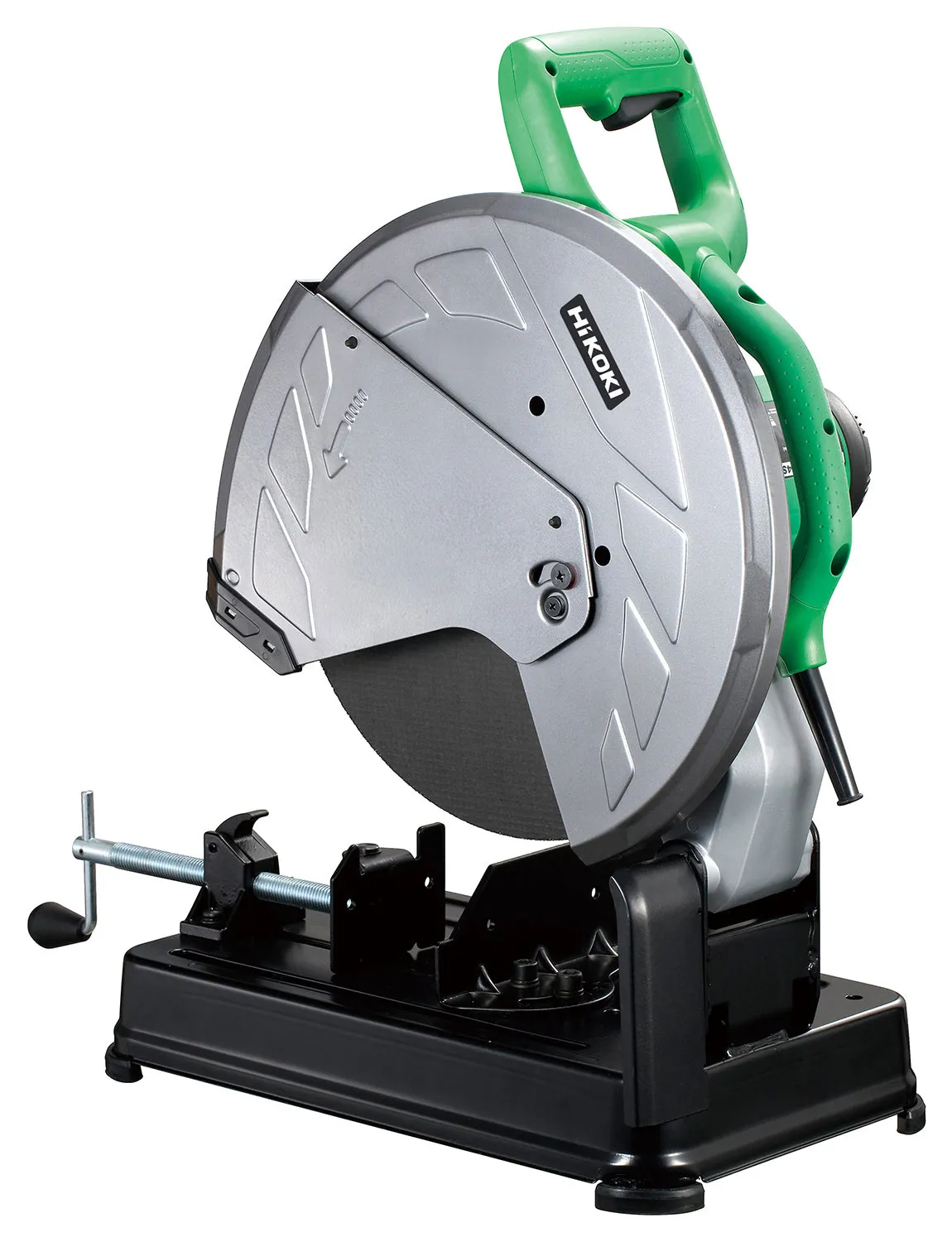

Hikoki 14 High Speed Cut Off Machine (Cutting) with Soft Start. Spindle Lock. Quick Lock Vise | Model : CC14ST
Features :
- Powerful motor with Soft Start
- Quick-lock vise for fast. precise clamping of materials
- Spindle lock for fast and easy wheel changes
- Compared to the CC14ST and CC14SF high-speed cut-off machines.
Specification :
- Capacity : Cut off wheel diameter : 355mm (14)
- Power input : 2.200 W
- No Load Speed : 3.800 rpm
- Dimensions (L x W x H) : 590 x 300 x 650mm
- Weight : 17.0 kg
| Shape of material to be cut | Cutting angle 90 | Cutting angle 45 |
|---|---|---|
| 125mm (4-59/64) | 100mm (4) | |
| 110 x 110mm (4-21/64 x 4-21/64) | 90 x 90mm (3-35/64 x 3-35/64) | |
| 170 x 100mm (6-11/16 x 4) | 100 x 90mm (4 x 3-35/64) | |
| 137 x 137mm (5-25/64 x 5-25/64) | 72 x 72mm (2-53/64 x 2-53/64) |
Standard Accessories :
- Cut-off wheel
- Hex. Bar wrench
