Name: Numerical Aeroplane Panel Sliding Table Saw MJK1132F1 3.2M (10fts) | Model: MJK1132F1
SKU: 237254

Product Details ＋

Numerical Aeroplane Panel Sliding Table Saw MJK1132F1 3.2M (10fts) | Model: MJK1132F1

Descriptions:

Precision sliding table saw designed to cut panels precisely. hd touch screen coupled with positioning motors provides high precision positioning of panels. maximum operation convenience. save place. save money.

Height of saw blade can be adjusted electrically.
Main saw blade rotating speed up to 5200rmp and max. Cutting length 3100mm.
Sliding table adopted modern streamline appearance coupled with surface treatment. attractive appearance. longer service life.
Intelligent transmission mechanism designed for maximum operational convenience. helps to save labour.

Features:

Crosswise guiding board can move automatically by controlling on touch screen. easy and precise.
Strong machine body for great stability and longer service life.
Height of saw blade can be adjusted electrically just by one button.
Main saw and scoring saw can tilt within 0-45by using hand wheel.

BODY FRAME

The well fabricated and heat treated body frame is strong and stable so that long service life is guaranteed.

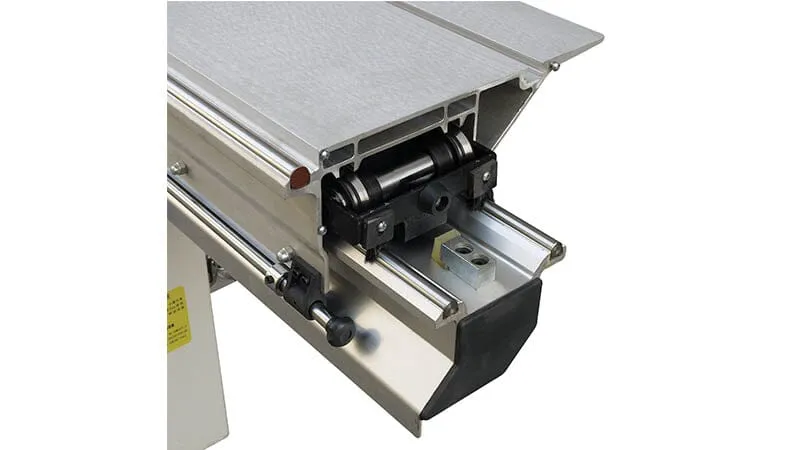

SLIDING CARRIAGE

Linier round guide rail coordinated with ball result in higher quality. standard product. ensure high precision after long time use.
The anodized aluminum carriage is stable and avoid scratches left on panels;
Small rollers inside carriage for carriage smoothly sliding during cutting.

SLIDING FIXTURE

Designed to fix sliding carriage after panel position is determined. ensures high precision.

SAW UNIT

Powerful motors to ensure excellent cutting performance;
Main saw blade rotating speed can be easily switched over between 5200 and 3800 rpm.

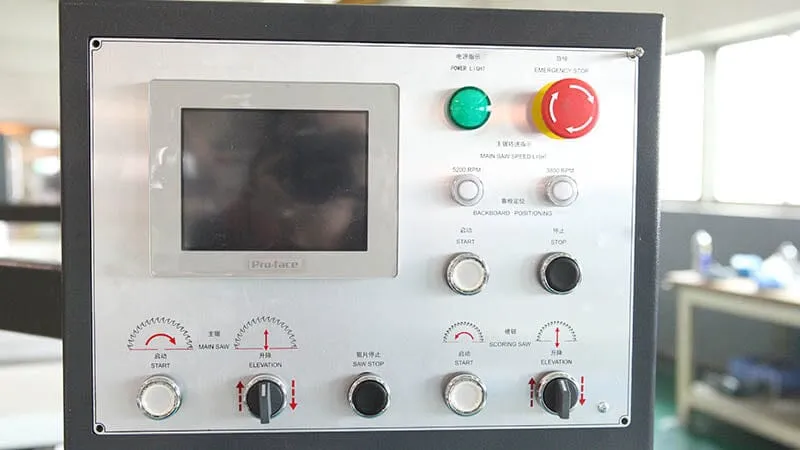

HD SCREEN

Adopted HD screen to adjust not only main saw speed . but also start and stop of main saw and scoring saw available to be controlled by using it. Increase the operational convenience.
Automatic positioning of panels is possible by inputting panel size in touch screen.
Height of saw blade can be adjusted electrically.
Two optional panels provide maximum convenience.
Scram button used to cut power in case of emergency. prevent operator from danger.

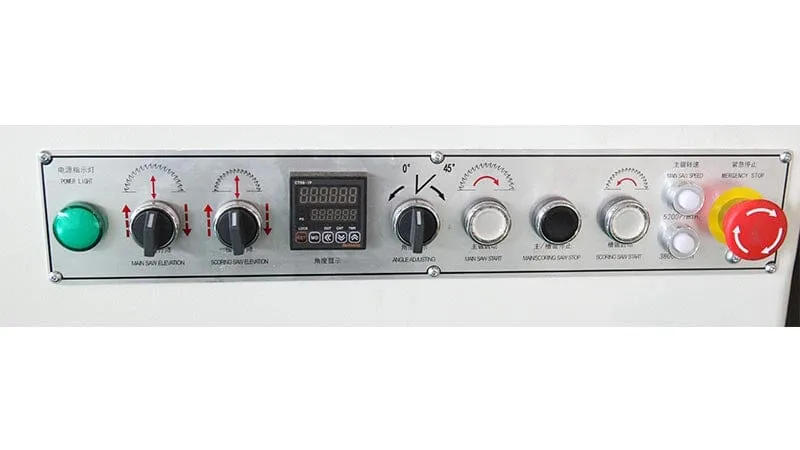

HIGH PRECISION ELECTRONIC DISPLAY

Saw blade angle available to be set from 0 to 45. the saw blade tilting can be numerical displayed.

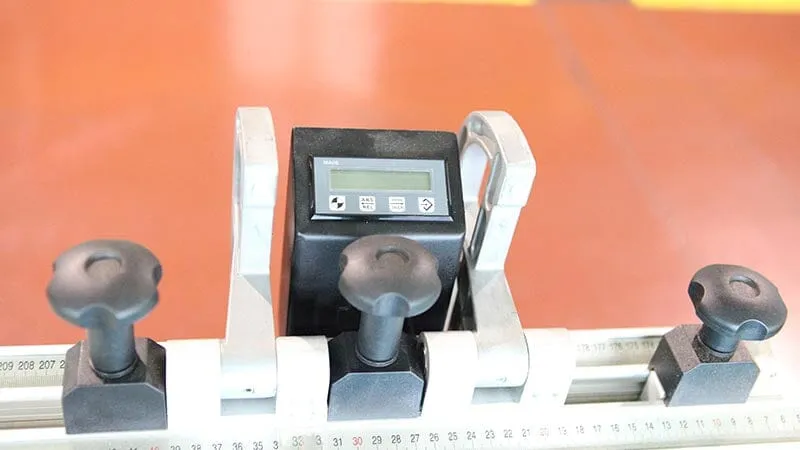

HIGH PRECISION NUMERICAL CONTROLLED BAFFLE
After inputting the panel size in touch screen. baffle can fix panel automatically.
Working table adopted thick steel sheet structure which results in higher quality and stiffness.
Small or big panels are accessible.

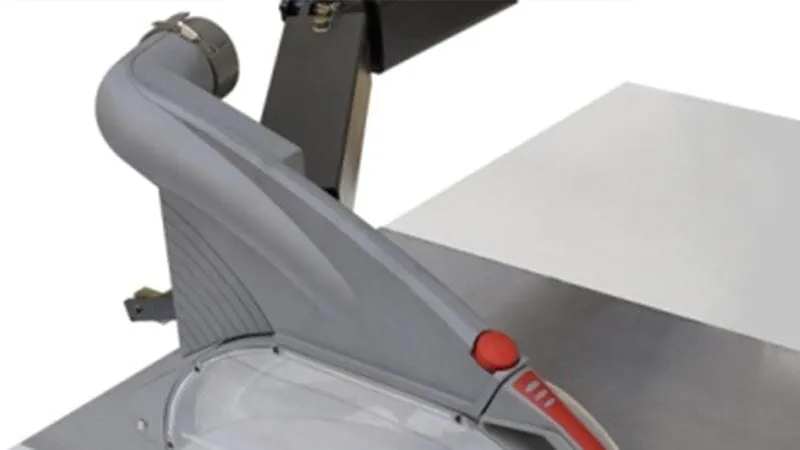

DUST EXTRACTION

Used to prevent scrap and dust from flying so as to extend service life of machine. and provides good processing condition. helps protect operator from danger.
Saw blade with a semi enclosed dust extraction overhang. gives the machine added dust collection performance.

LUBRICATION

Lubrication for keeping machine components running Smoothly. easy to operate.
Maintain machine for longer service life.

PUSH STICK

The push stick is important safety tools for cutting narrow Work pieces.
The push stick is used for cutting work pieces Within the danger zone of the saw blade (<120 mm).
The push stick must be used for cutting narrow Work pieces (<30 mm).
Worn down push woods must be replaced on time.
