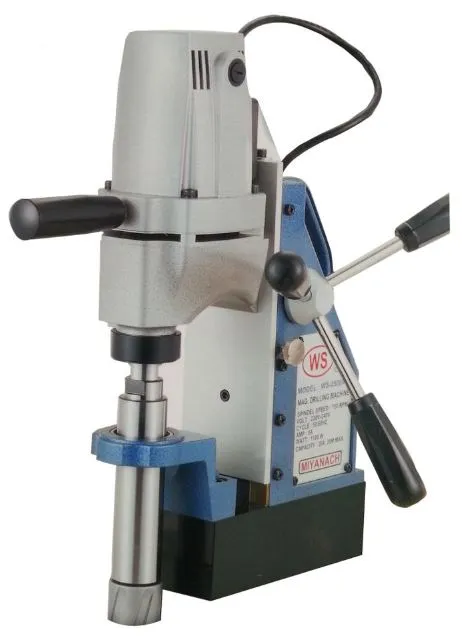

WS 230v 1100W 35mm Portable Magnetic Drill | Model : WS-3500M

Features :

• Serves as two modes of cutter that allows loading in a One-Touch Shank or Weldon Shank etc
• Able to switch betweentwo types of drilling by simply changing the drill chuck. Ability to load the following :
• Annular Cutter
• Twist Drill
• Hole Saw
• Bearing Bracket aligns cutters precisely which increases cutter and motor life. The main shaft's stabilityis enhanced when utilised with roller bearing and that stops the motor shaft from swaying easily
• The roller bearing is designed to decrease wear and tear damage so as to reduce the frequency of cutter replacement
• The magnetic base is made up of double coils thus during start up. the front coil will become magnetic first.
• This design is meantto make it easier for theuser to make adjustments aligning the magnetic drill.
• The 2 coil design is also safer because when 1 coil burns out. the other coil will still be magnetic. holding the drill and preventing it from falling off.
• The use of an electronicswitch rather than a traditional switch is to ensure voltage stability and for the user to adjust the electrical current needed.

Specifications :

• Motor Rated Power Consumption : 1100W
• Motor Rated Current : 5A
• No Load Speed : 780 rpm
• Tool Adaptor : 19.05mm Weldon / One Touch direct arbor
• Adjustable in height for max. stroke : 100mm
• Coolant Supply : via Tool Holder
• Magnet Power Consumption : 38W
• Magnet Adhesion : 7350N / 750kgf
• Magnet Dimensions : 186 x 80 x 58 mm
• Weight : 14 kg
• Hole Cutting Capacity :
• Annular Cutter :
• Out. Diameter :
• 17 - 35 mm (Standard)
• 13 - 40 mm (Non-standard)
• Plate Thickness
• 9 - 35 mm (Standard)
• 9 - 50 mm (Non-standard)
• Twist Drill : 1 - 13 mm

Standard Accessories :

• Pilot pin 8.0 x 91mm : 1 pc
• Double Open End Wrench : 1 pc
• Hex. Key Wrench :

• 2.5mm : 1pc
• 6.0mm : 1pc
• Operating Handle : 3 pcs
• Lifting Handle : 1 pc
• Fuse Block : 1 pc
• Carbon Brush : 1 set
• Fixed Screw : 1 pc
