Product Details
+

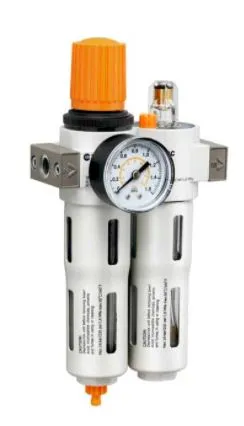

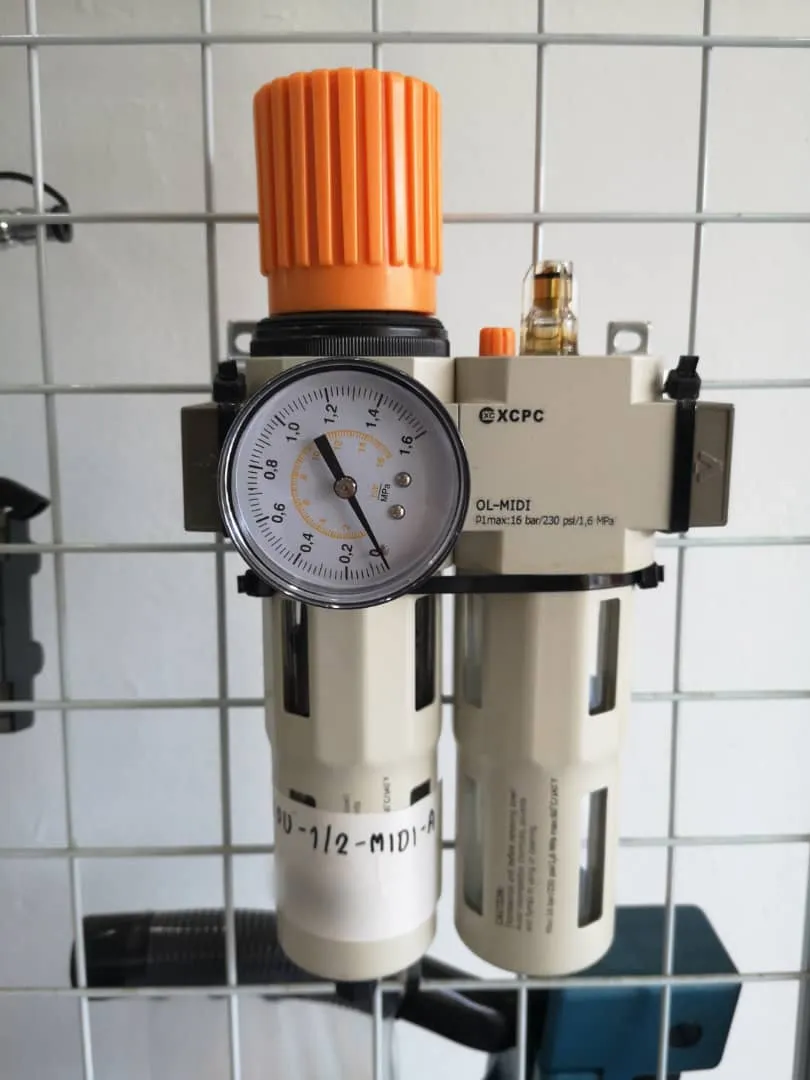

XCPC 1/2 Integrated Air Filter C/W Auto Drain | Model : AF-XOU-1/2-MIDI-A
Specifications :
- Manual Drain : Working Pressure 12 bar . 40m
- Manometer : 0 - 12 bar
- Medium : Compressed Air
- Feature of Structure : Sintered filter with water separator. MIDI . Piston regulator . Diaphragm type regulator Direct Constant density lubricator
- Mounting Type Vertical 5
- Connection G1/2
- Standard Nominal Flow Rate : 2600
- Primary Pressure : 1.5 - 12bar
- Working Pressure : 0.5 ~ 12Bar/ 0.5 ~ 7bar
- Min Standard nominal flow rate : 6 L/min
- Grade of filtration : 40m/5m
- Capacity of condensate fluid : 22 ml
- Temperature Range : 0 ~ 60C
