Product Details
＋

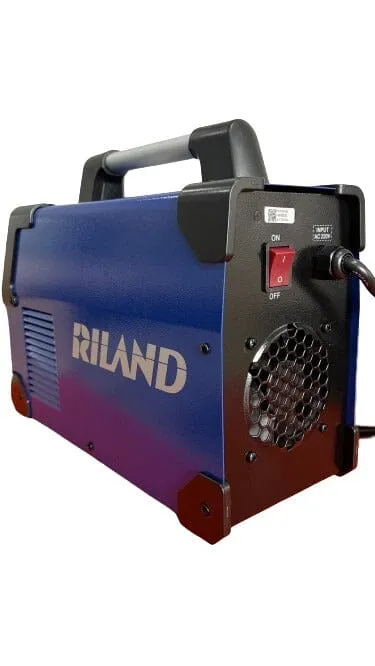

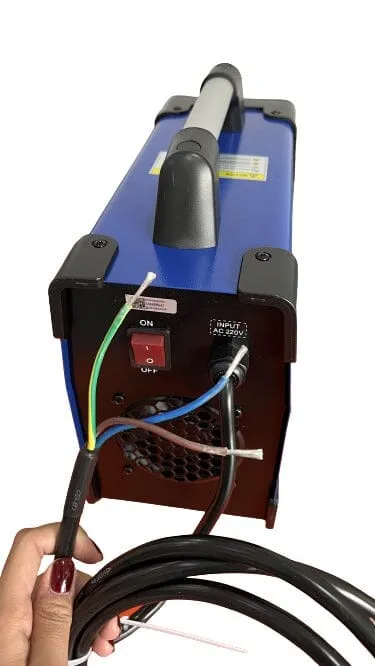

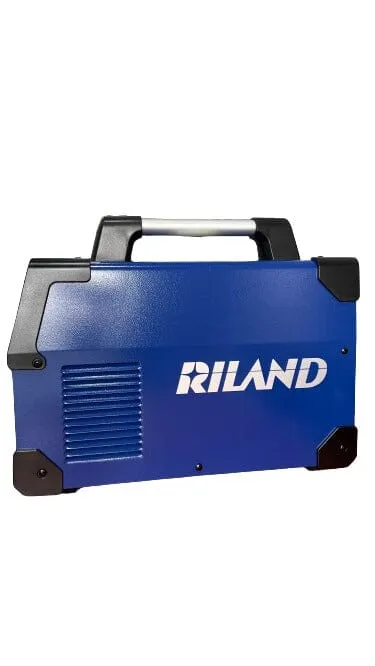

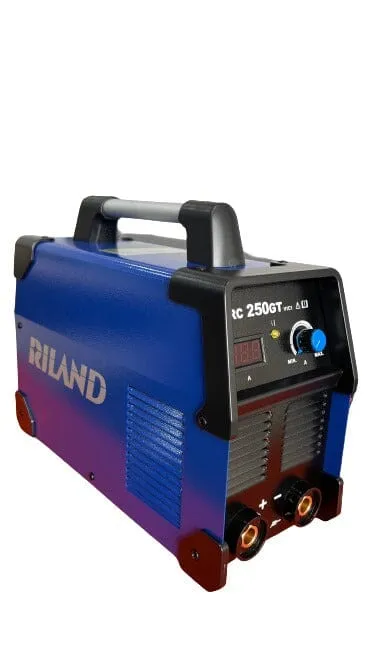

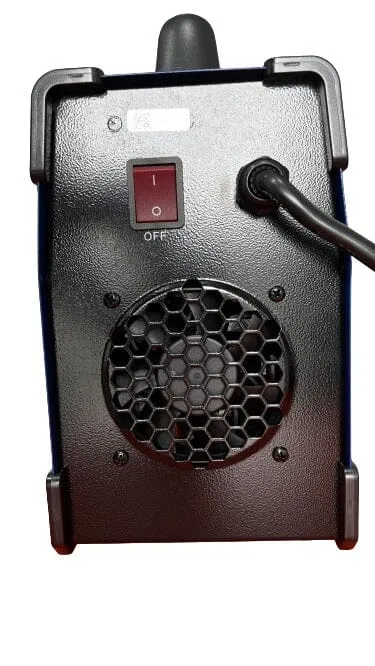

Riland ARC250GT Welding Machine 220V C/W 3m Ground And Welding Cable | Model : W-ARC250GT
Features :
- Application : Light steel structure. Machinery maintenance. Sheet metal Processing Mild steel. Stainless steel. alloyed steel. etc
- Equipped with RILAND self-developed RICHI chip anduse the 70KHz latest high grade IGBT technology.
- Wide range input voltage: 220V15%.

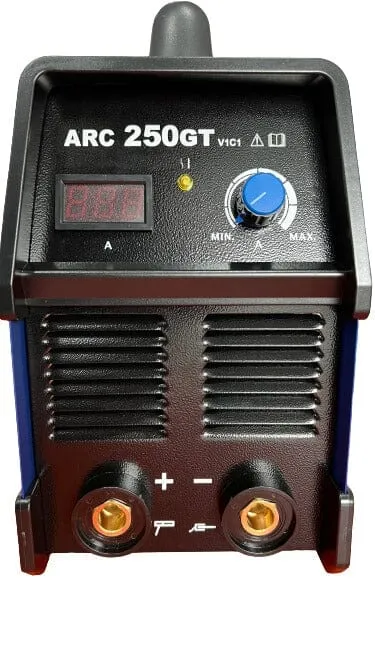

- LED Display shows the welding current.
- Adopt intelligent MCU control with high reliability.built-in power management system.
- Anti-stick function built-in. preventing against overloading the unit and easing removal of the electrode.
- Auto-Adaptive arc force and hot start current.
- Equipped with an output reactor. it can be welded withacid and basic electrodes. even cellulose electrodes.
- Perfect intelligent protection system: automaticprotection of current sudden change. overheating. inputvoltage fluctuation. etc.
- Non-stop welding for 2.5 or 3.2mm(4.0mm) electrode.for ARC 250GT even can welding 4.0mm electrode.
- Generator set okay
Specification :
| Design standards | IEC/EN60974-1 |
| Input voltage (V) | 1P 220V15% |
| Frequency (Hz) | 50/60 |
| Rated max. supply current (I1max) | 40.8 |
| Max. effective supply current (I1eff) | 22.3 |
| Welding current range (A) | 30-210 |
| Rated output current range (A) | 30-190 |
| Rated output voltage range (V) | 21.2-27.6 |
| Rated duty cycle (40) | 190A/30% |
| 160A/100% | |
| Duty cycle (25) | 190A/60% |
| No-load voltage (V) | 60 |
| Power factor | 0.73 |
| Efficiency (%) | 80% |
| Insulation grade | F |
| Housing protection grade | IP21 |
| Power source Weight (kg) | 5.8 |
| Overall dimension (L*W*H mm) | 402160300 |

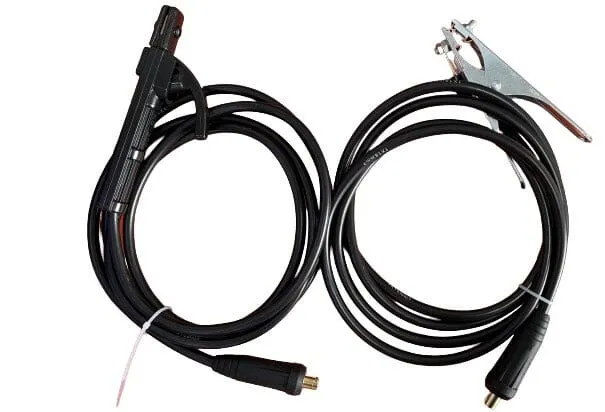

Accessories Included :
- 1 set electrode holder.3m
- 1 set earth clamp.3m
